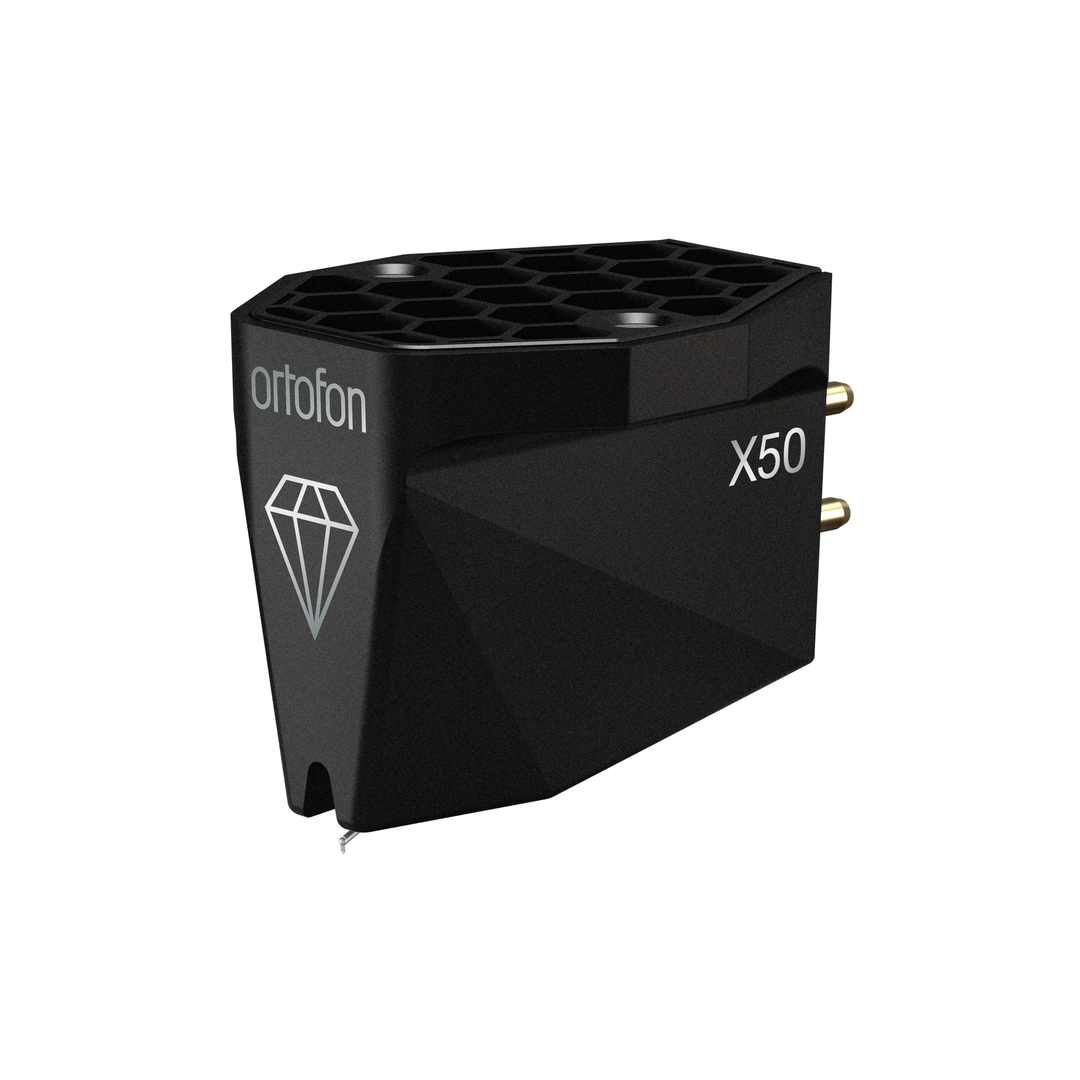

Ortofon MC X50

• A New Benchmark in Analog Perfection

  In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

• Exceptional Signal Clarity
  Pure Silver Coil System
  All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

• Maximum Magnetic Efficiency
  Magnet system
  The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

• Precision Engineering for Unmatched Stability
  Custom-Developed Rubber Dampers
  In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

• For the MC X50 a newly developed rubber suspension featuring a newly formulated compound has been engineered.

• MIM-Molded Honeycomb-Structured Core
  Experience the depth.
  Hear every detail.
  At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

• After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

• Modern Elegance with Distinctive Design
  The Shape of Sound
  The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.



• Channel balance at 1 kHz
  0.5 dB
• Output voltage at 1 kHz, 5cm/sec
  0.4 mV
• Channel separation at 1 kHz
  28 dB
• Frequency response 20 Hz - 20 kHz
  +/-1 dB
• Compliance, dynamic, lateral
  14 μm/mN
• Cantilever material
  Boron
• Stylus type
  Nude Micro Ridge
• Stylus tip radius
  r/R 2.5/75 μm
• Stylus suspensions
  Ortofon exclusive
• Coil system
  High-purity silver Coil wire
• Tracking force, recommended
  2.0 grams
• Internal impedance, DC resistance
  6 Ω
• Coil wire material
  High-purity silver
• Cartridge body material
  MIM Stainless Steel & Honeycomb Core Structure
• Cartridge colour
  Black
• Cartridge weight
  8.6 grams
