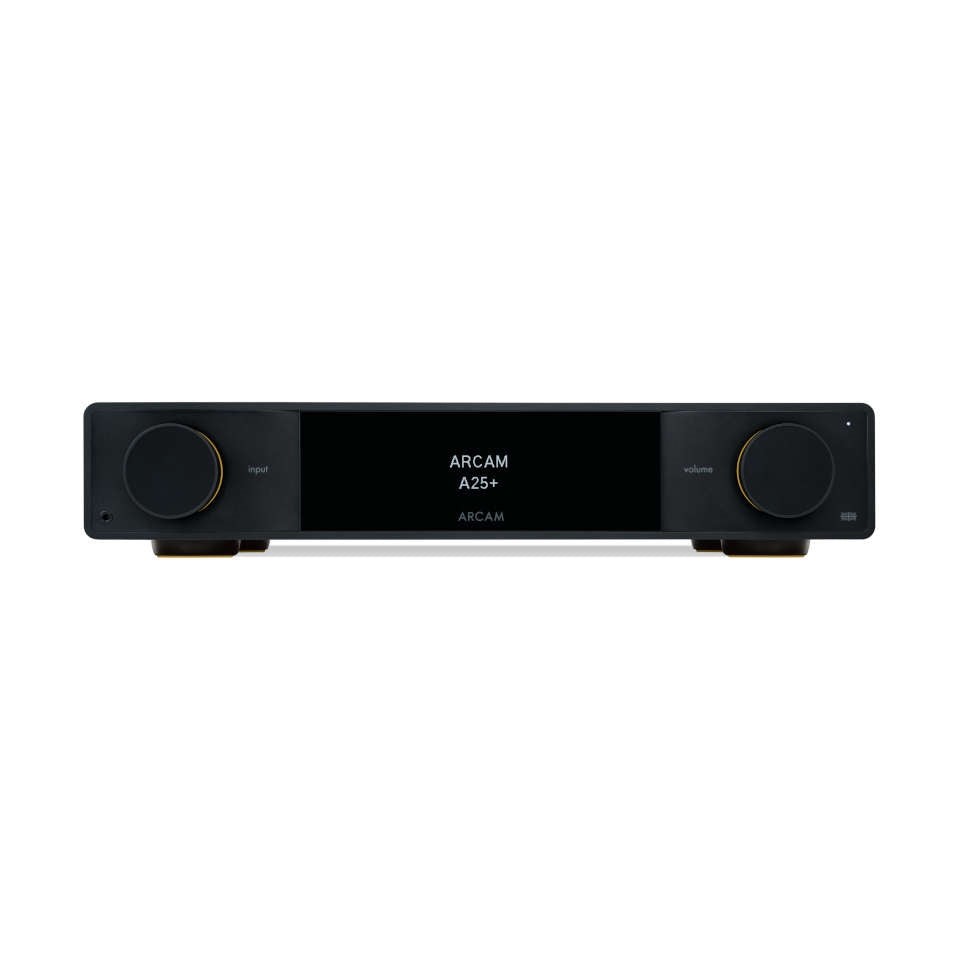

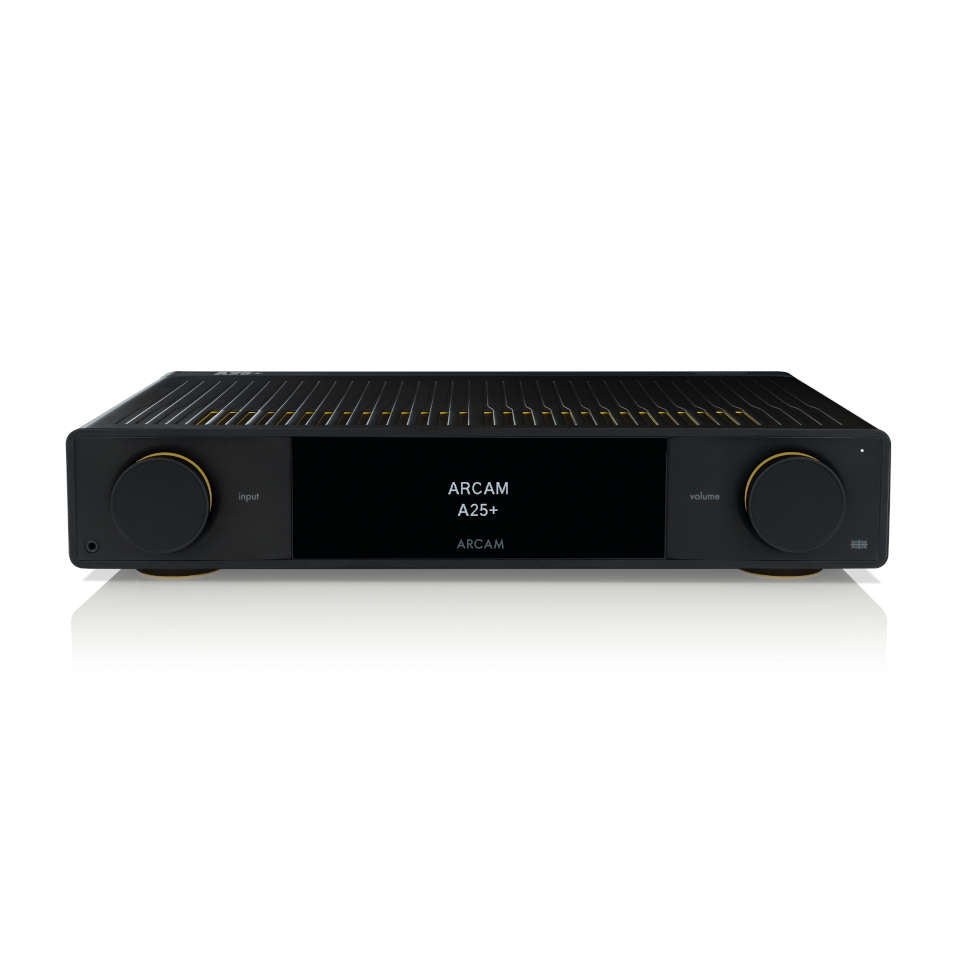

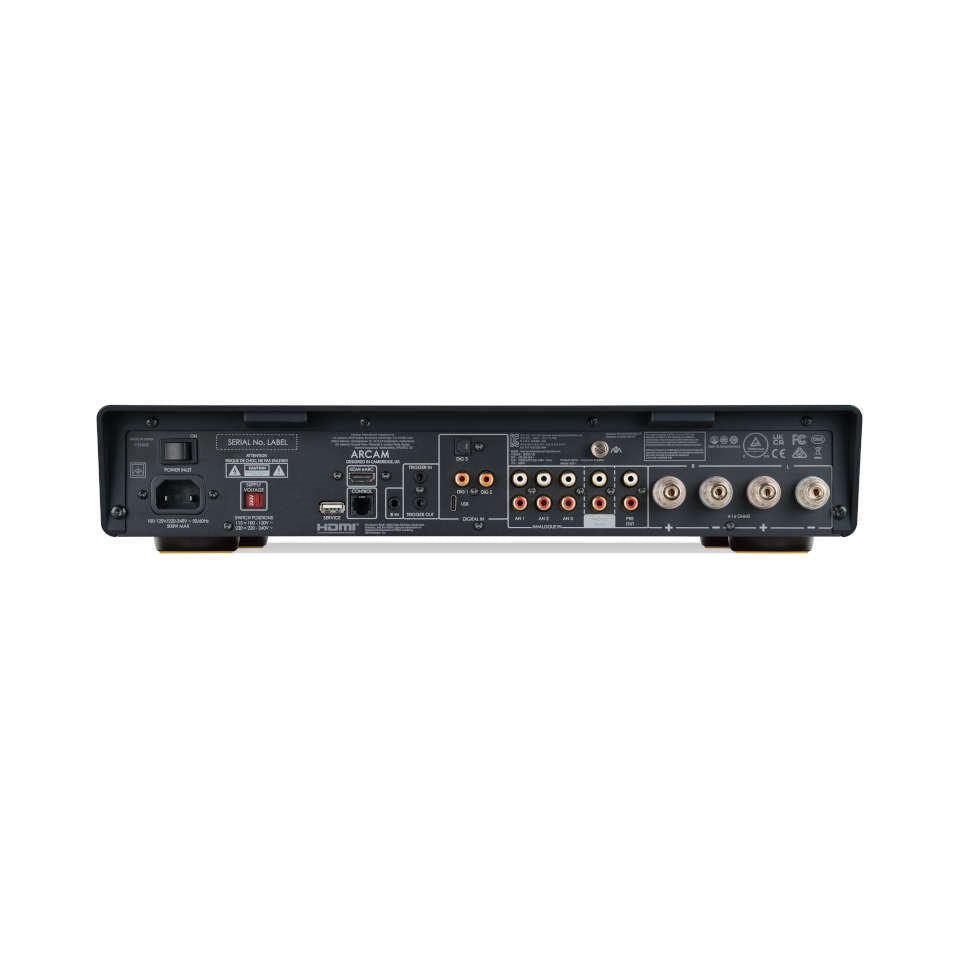

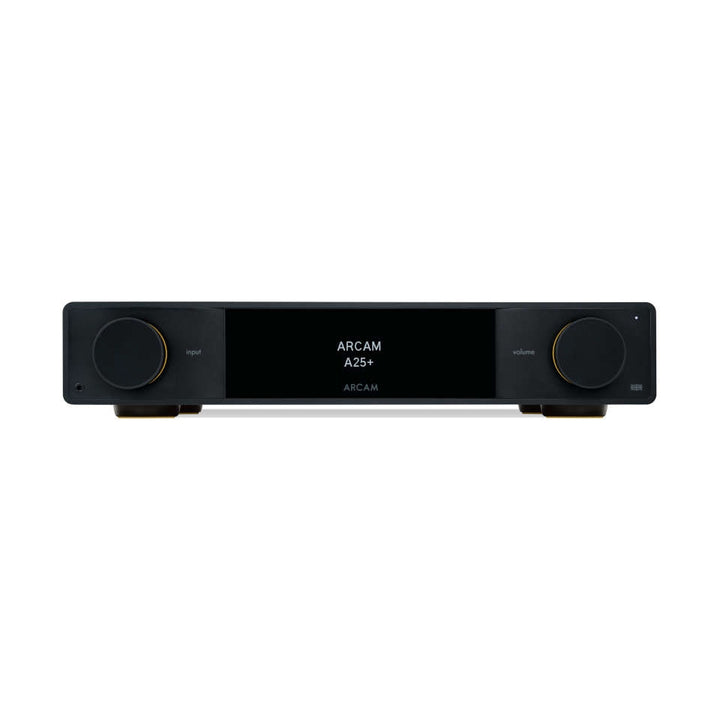

Arcam A25+ Integrated Amplifier

• The "A" in ARCAM stands for amplification, where our expertise lies. The A25+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A25+, we haven't rested. Our engineering team pushed further to create the premium ARCAM A25+, an even better sounding and more versatile integrated amplifier.
• With a wide array of analogue inputs, including a meticulously tuned phono stage, and digital inputs including HDMI eARC and USB-C, the A25+ provides an impact for everything from vinyl to TV and Streaming.
• The A25+ features an enhanced power supply design, new DAC and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required. Powered by our 5th generation Class G amplifier design, you can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier.
• ARCAM Class G amplification - for ultra-low distortion
• 2x 100W Power Output - powers loudspeakers effortlessly.
• Wireless audio with Snapdragon Sound and Auracast built-in - for the best sound with the most convenience
• Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
• HDMI eARC/ARC input
• USB-C input
• Fine-tuned phono stage - ensures your records sound as detailed and engaging as possible
• Plastic Free Packaging - for easy disposal of natural materials



• Continuous power output (0.5% THD), per channel
  2 channels driven, 20Hz - 20kHz, 8Ω 100W
  2 channels driven, 1kHz, 4Ω 165W
  Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%

• Analogue Inputs
  Number of inputs 3 (RCA pairs)
  Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
  Frequency response 20Hz—20kHz ± 0.2dB

• Phono (MM) Input
  Input impedance 47kΩ + 100pF
  Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB

• Digital Inputs
  Supported Sample Rates (kHz)
  USB-C Only 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1
  Other digital inputs 192, 176.4, 96, 88.2, 48, 44.1

  Bit depths (bit) 32, 24, 16
  Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
  Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

• Headphone Output
  Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
  Load range 16Ω - 2kΩ

• Wireless Specifications
  Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
  Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm

• General
  Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
  Power consumption (maximum) 500W
  Power consumption (standby) <0.5W
  Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm
  Weight (net) 9kg
  Weight (packed) 12kg

• Supplied accessories
  Mains lead(s)
  Remote control with 2 x AAA batteries
  Quick Start Guide
  Important Safety Instructions



Click here to download documentation from the manufacturer
