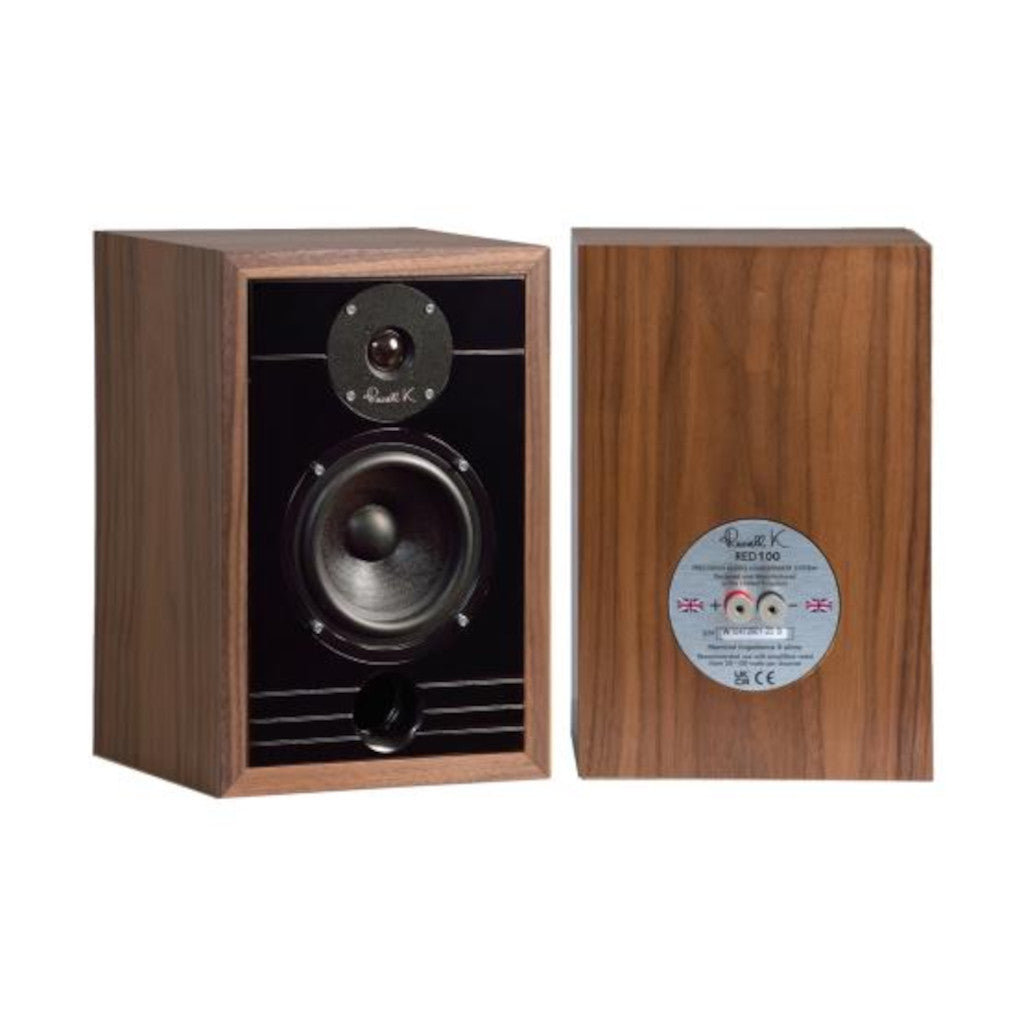

Russell K Red 100 Standmount Loudspeakers

• The Red 100 was the first loudspeaker designed by Russel K. and has since then won the hears of many HiFi reviewers and customers.

  Alan Sicrom of Hifi+ puts it like this: “I think the reason the Red 100 works so well is it combines the twin demands of both timbre and tempo exquisitely, highly recommended.”


• Cabinet
  Dimensions H- 400mm W-260mm D-270mm
  Construction 16mm MDF all sides apart from front baffle which is 19mm.
  Totally undamped cabinet
  2 acoustic loading bracing shelves with multiple apertures mounted above and below the woofer
  Reflex port loading tuned to 35Hz
• Drive Units
  6.5” Bass unit with impregnated paper cone and curved optimised acoustic profile
  High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
  25mm soft dome tweeter
  Double Ferrite magnet system
  Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
• Crossover
  Drivers connected in positive phase, crossover frequency 2200Hz nominal 12 db/Oct
  Bass Inductor “Enclosed Field Ferrite Core” Very low DCR nominal stray fields
  Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
  Both Drivers have only one component in the signal path
  Phase optimised through the crossover region
  In room frequency range 30Hz-20KHz
