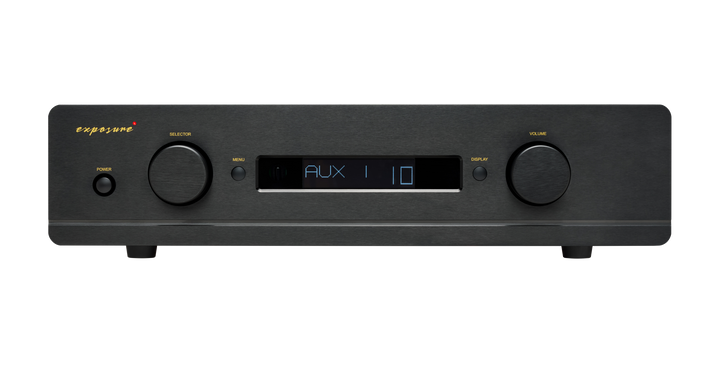

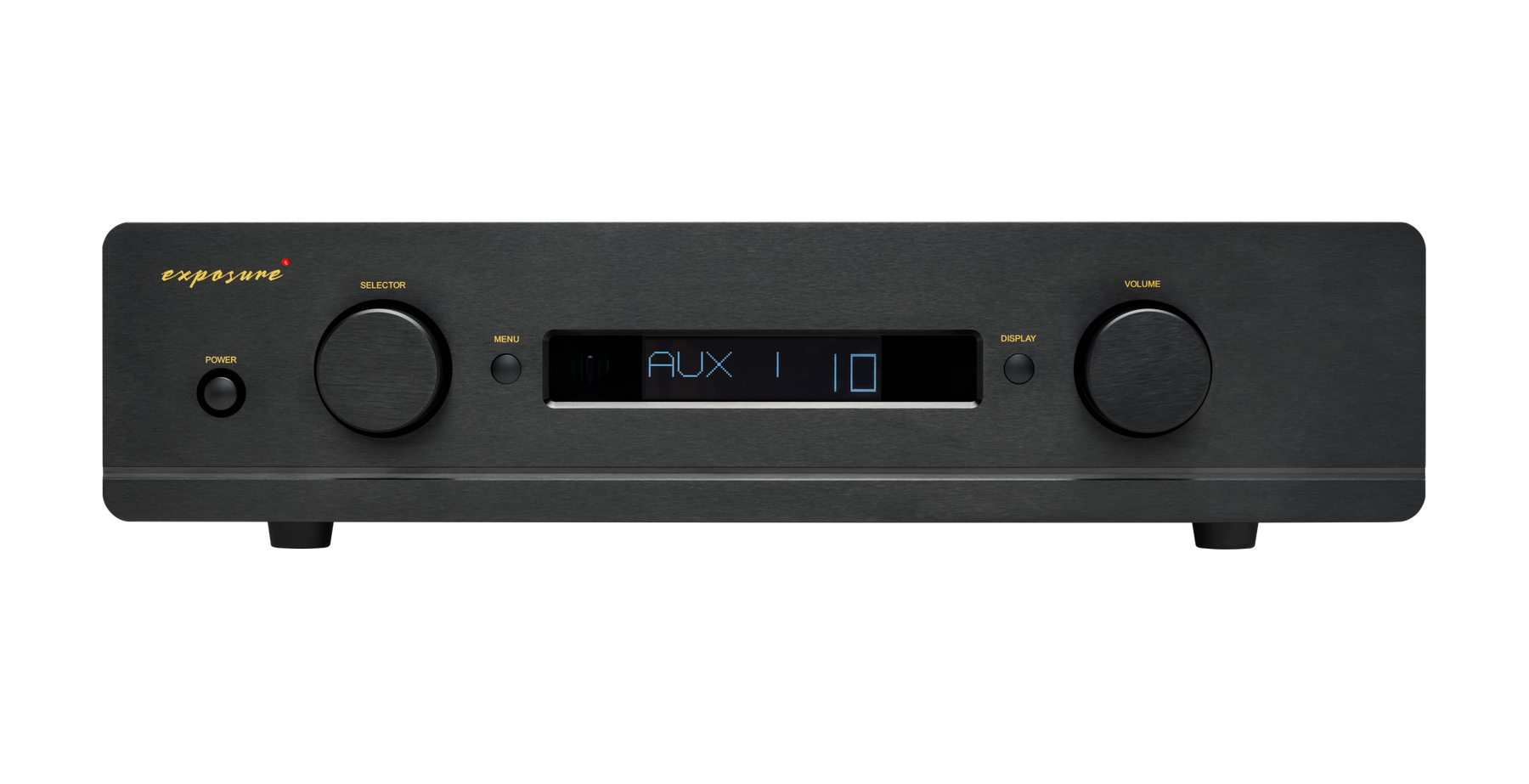

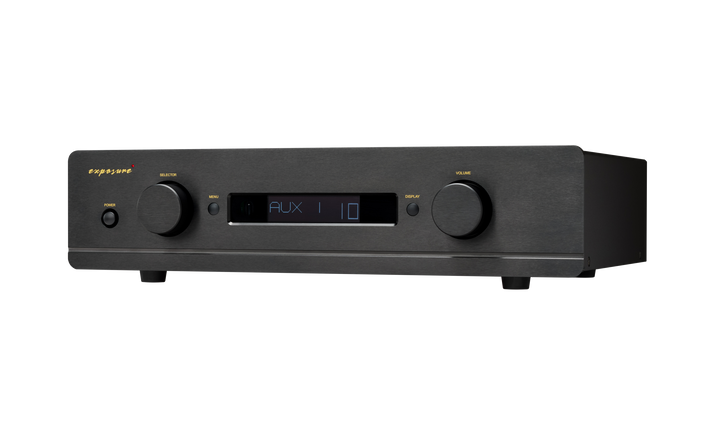

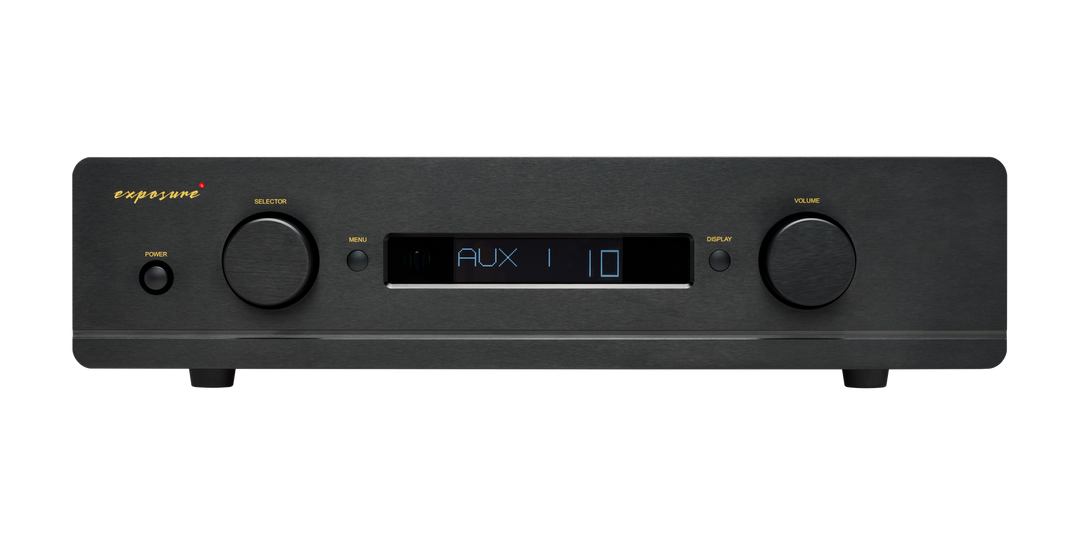

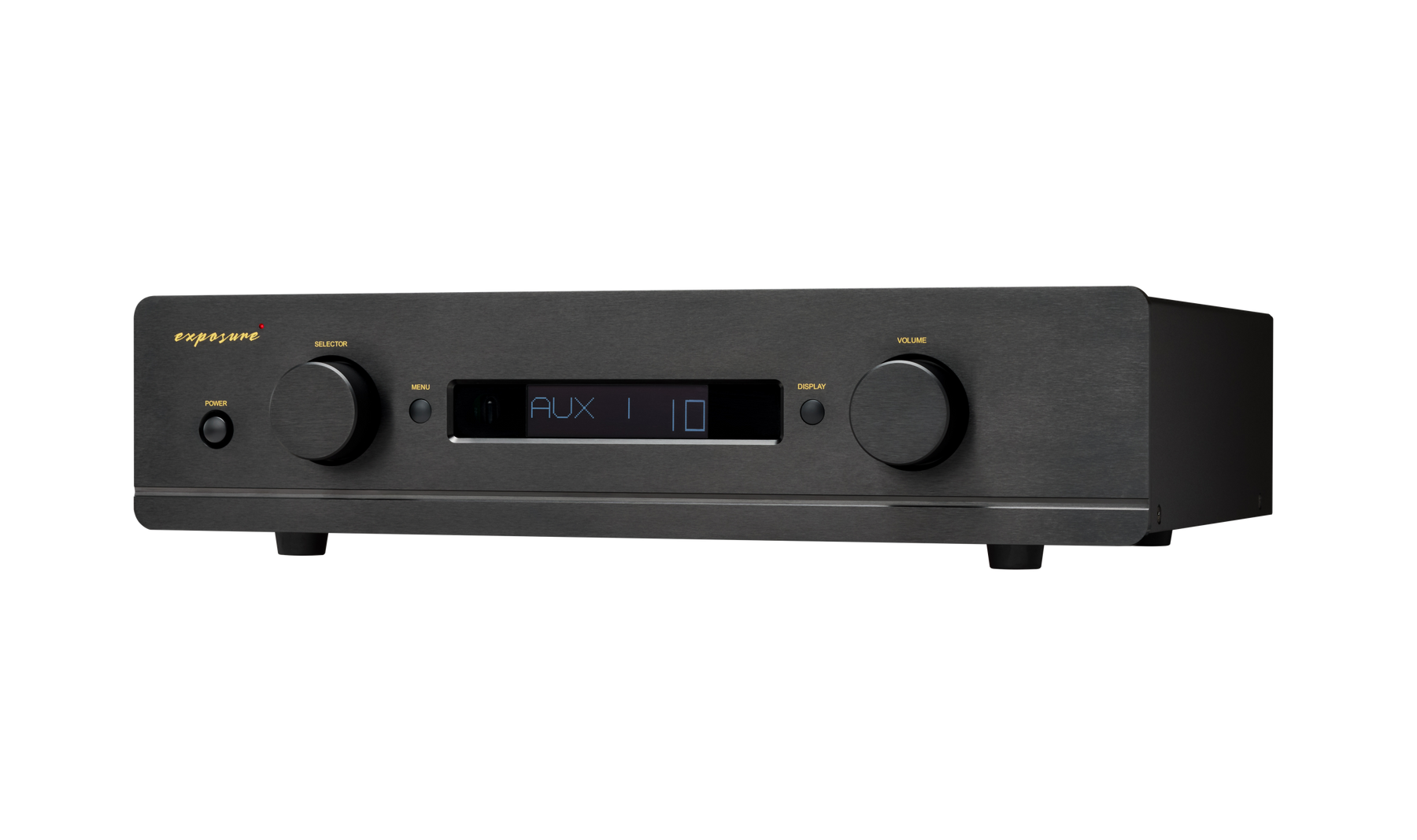

Exposure 5510 Integrated Amplifier

• Exposure has been perfecting the art of creating real Hi-Fi for real music lovers since 1974. Designed, engineered and proudly manufactured in Britain by a talented team of audio engineers who are passionate about the reproduction of music.
• The Exposure Integrated Amplifier
  The 5510 Series is Exposure's best performing yet – using the best quality components and engineering practices, the 5510 Series is designed and built to give you years of listening enjoyment and pleasure.
• Power That Moves You
  With 120 watts per channel, this amplifier delivers plenty of muscle to drive your speakers with authority. Expect deep, controlled bass, detailed mids, and sparkling highs, whether you’re listening to delicate acoustic pieces or high-energy rock.
• Made for Music, Your Way
  Flexibility is at the heart of the design. Alongside six versatile line inputs, you can upgrade the amplifier with optional phono boards (MM, MC, or DS) to suit your turntable, or a plug-in DAC board for pristine digital playback. This ensures your amplifier grows with your system and your music collection.
• Silence Where It Matters
  Thanks to a custom toroidal transformer with hum shield and a carefully engineered low-noise design, your music emerges from a pitch-black background, letting every detail shine without unwanted interference.
• Elegant Simplicity
  A high-grade aluminium chassis controls resonance and looks stunning in any room. The crisp white OLED display offers five brightness settings and an auto-off mode, so it’s always easy to read but never distracting.
• Convenience Built In
  From the remote control to multiple output options, this amplifier is designed to make your listening experience effortless.
• Quality That Lasts
  Built with precision, finished in timeless black, and backed by a three-year guarantee, this is an amplifier you can enjoy for years to come.

Optional Phono Boards
Ideal for vinyl lovers who want the perfect match for their turntable.
• MM (Moving Magnet)
• MC (Moving Coil)
• DS (For use with DS Audio manufactured Optical Cartridge)

Optional DAC Board
• Add a high-quality digital-to-analogue converter
• Unlock the full potential of digital sources like streamers, CD players, or laptops.

• Outputs:
• Output Level:
  +9dB unbalanced output+15dB balanced output
• Power Output: 2 x 12OW (8 Ω)
• Sensitivity:
  500mV
• Maximum Output
  :>9V RMS unbalanced
  Frequency Response
  :-3dB at 1Hz and 57kHz, ref 1kHz, max volume
• Total Harmonic Distortion
  :<0.005% at 1.6V RMS output, 1kHz
• Signal to Noise Ratio
  : >100dB, A weighted
• Channel Separation
  :>60dB 20Hz to 20kHz (Typically >85dB at 1kHz)

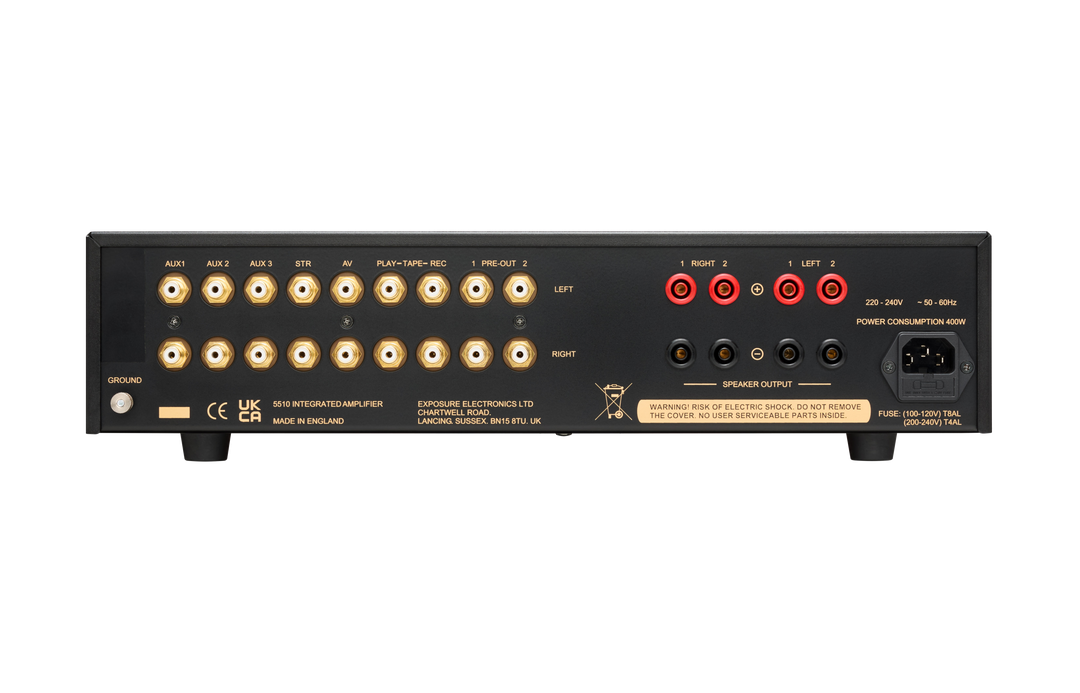

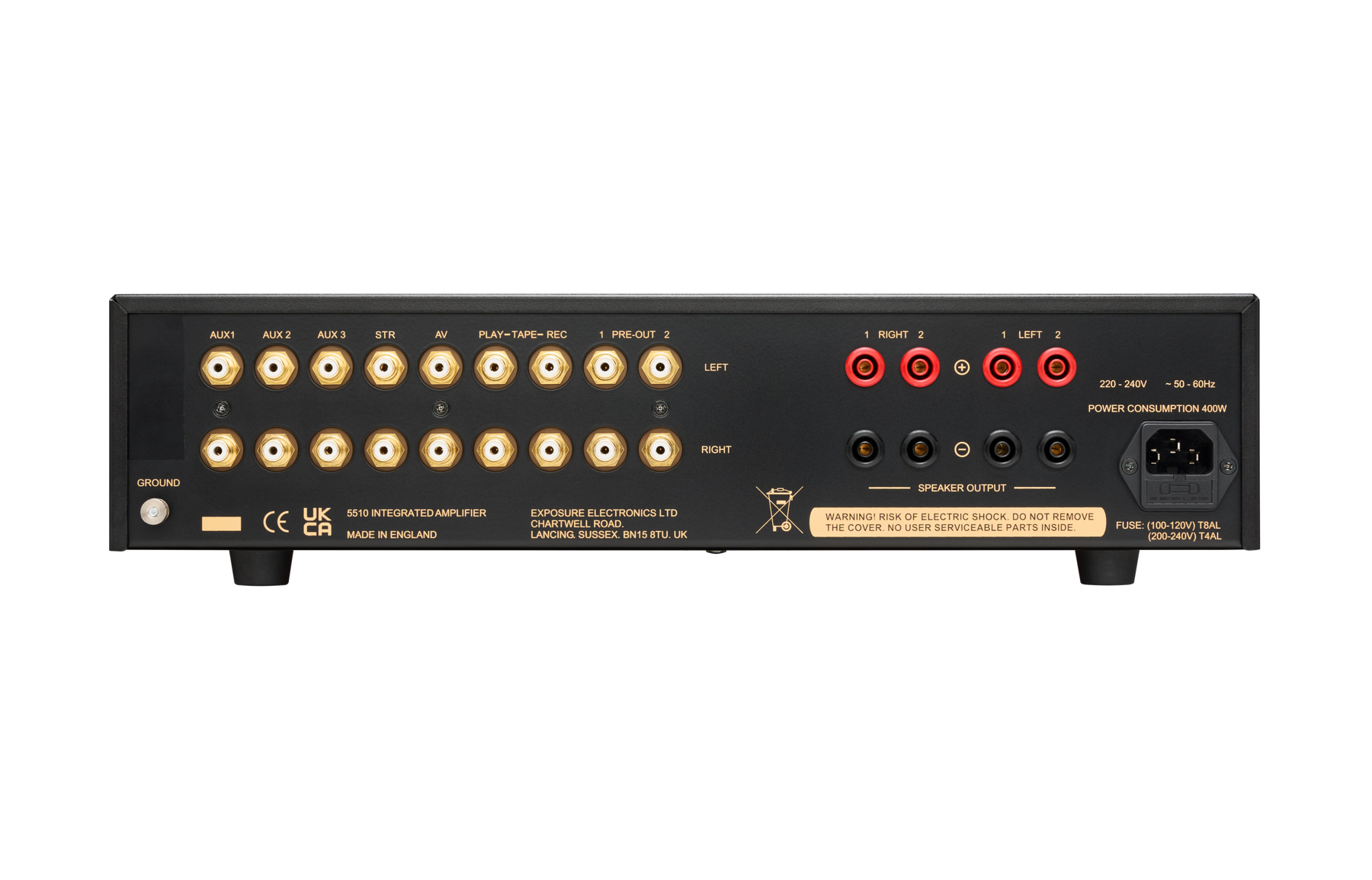

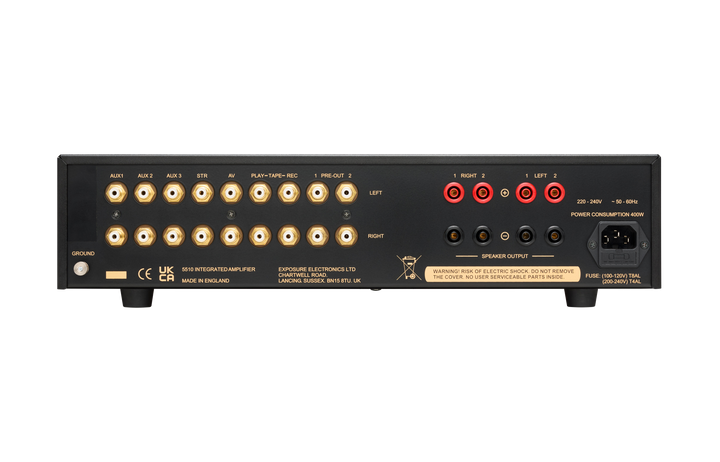

• Outputs:
  1 x RCA recording output, 2 x RCA preamp output for subwoofers or bi-amping, Speaker terminals compatible with 4 mm banana plugs
• Inputs:
• Input Impedance:
  18K Ohms minimum
• Inputs: 6 x unbalanced RCA, Optional DAC+ board with USB and either BNC or optical inputs, Optional MM, MC or DS (for DS Audio optical cartridge) phono boards
• General:Mains Supply:
  110/120V or 220/240V, 50/60Hz (factory set)
• Fuse:
  T5AL for 110/120V units
  T2.5AL for 220/240V units
• Power Consumption:
  <25W
• Dimensions (HxWxD):
  90mm x 440mm x 300mm
• Net Weight:
  6kg
• Gross Weight:
  8kg

• Optional Specifications
• 50100 MM or MC Board Options
• All discrete transistor audio stages
• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• DC coupled input stage

• MC Board Specifications:
• Sensitivity and Signal to Noise, ref 1kHz and 250mV Out : GAIN 1 jumper fitted :   2.5mV,  >68dB S/N (default setting)No jumper fitted :   5mV,     >70dB S/N
• Loading:
  6n8 in parallel with 1K5 Ohms
• Or With Loading Jumpers Fitted :
  1+2+3  100 Ohms (default)
  1+2  110  Ohms
  1+3 130  Ohms
  2+3 210  Ohms
  1 160  Ohms
  2 310  Ohms
  3 470 Ohms

• MM Board Specifications:
  Sensitivity and Signal to Noise, ref 1kHz and 250mV Out :GAIN 1 jumper fitted :   2.5mV,  >78dB S/N (default setting)No jumper fitted :   5mV,     >79dB S/N

• Loading:
  47K OhmsOr With Loading 1 Fitted :Additional 220pF in parallel with the cartridge (default)

• 5010 DAC Plug-In Board Option
• Features
• All discrete transistor output stage
• High quality parts used throughout
• Tight tolerance parts used for analogue filtering
• Low noise audio stage power supply regulators
• DAC Specifications
• 2V RMS output for full scale input
• THD @ 1KHz < 0.005%
  One Coax (BNC) input sample rate supported : 32, 44.1, 48, 88.2, 96, 176.4 & 192kHz @ up to 24 bits.
• USB2 input sample rate supported : 44.1, 48, 88.2, 96, 176.4 & 192kHz PCM @ up to 24 bits.
