Nagaoka MP-500 (MI/MM) Cartridge

Nagaoka MP-500 (MI/MM) Cartridge

£799.00
/
Tax included. Shipping calculated at checkout.
  • Free UK shipping
  • Collection in store available

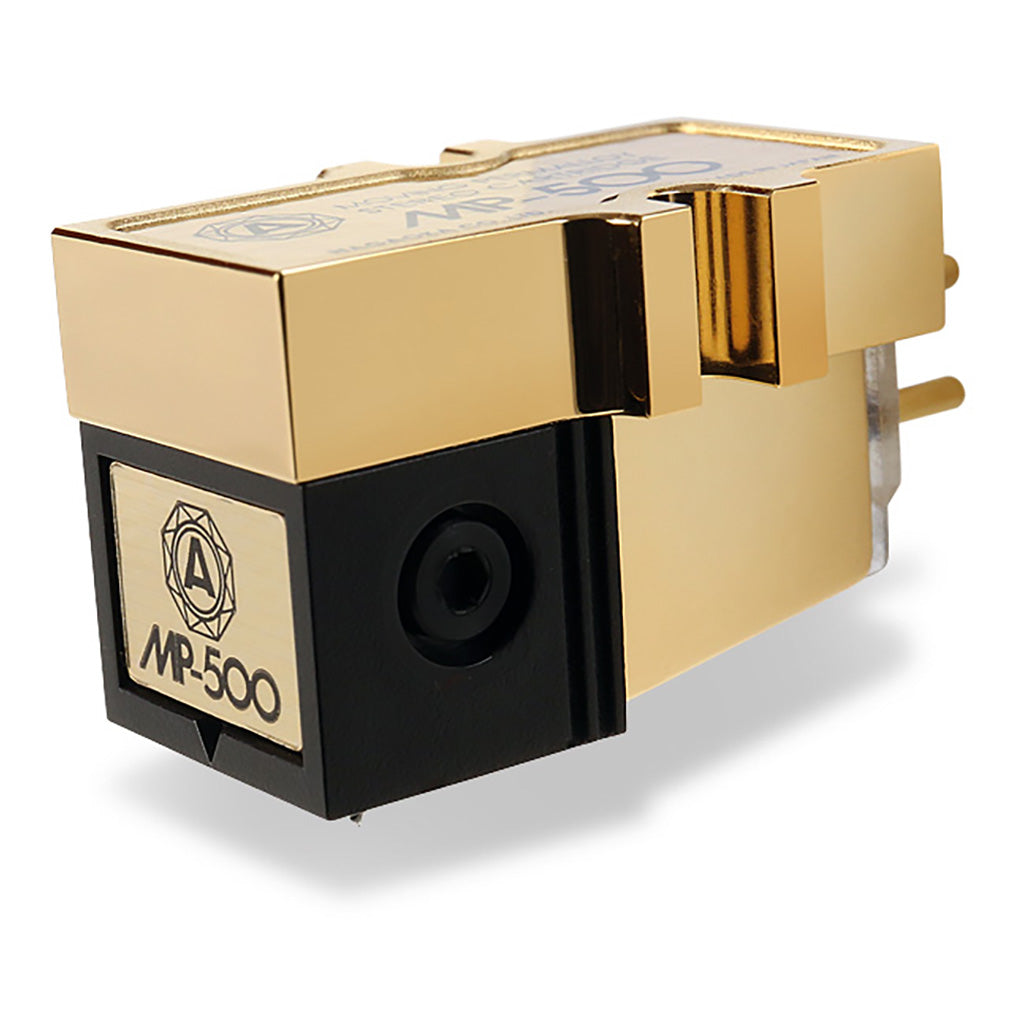

The Nagaoka MP-500 is a top of the line moving magnet cartridge, which delivers the very highest levels of musicality and expression - expertly reproducing vivid, colourful and multi-dimensional clarity that other cartridges cannot. The MP-500 is a truly stunning cartridge that will breathe new life into your record collection, and present them in a way you will never have heard before.

Featuring an exclusive super rigid body, the MP-500 produces superb fidelity and ultra resonance. A superfine line contact diamond stylus offers impeccable tracking and detail recovery, aided by a powerful samarium cobalt magnet. A low-mass high strength boron cantilever also aids the MP-500 with effortless tracking.


  • The Nagaoka MP-500 phonograph cartridge offers the highest musical and creative expression of the new MP series. It expertly extracts and reproduces with vivid, colorful and dimensional clarity what others miss. Meet our little friend - the Nagaoka MP-500 phonograph cartridge - the master of the grooves.
  • The time for the stylus replacement JN-P500 varies depending on how often and how it is used.  For general use at home the expected time is between 150-200 hours which by then the stylus will begin to wear and the tone quality starts to deteriorate. It is recommend to replace the stylus as early as possible so you can enjoy clear music  and cause no damage to the disc grooves.
  • Features
  • Exclusive super rigid body for ultra resonance and superb fidelity
  • Superfine line contact diamond stylus
  • Powerful samarium cobalt magnet
  • Low-mass, high strength boron cantilever
  • Carbon fiber reinforced plastic shoe
  • Anti ferrous magnetic perm-alloy shield casing


  • Type:
    Moving Permalloy
  • Cantilever:
    High-strength boron
  • Stylus Type:
    Superfine line contact diamond
  • Weight:
    8g
  • Output voltage:
    1kHz, 5cm/sec: 3mV
  • Frequency response:
    20Hz - 25kHz
  • Channel balance:
    1kHz: >1dB
  • Channel separation:
    1kHz: >27dB
  • Recommended loading:
    47k ohms
  • Dynamic compliance:
    8.5 x 10-6cm/dyne
  • Tracking force range:
    1.3 - 1.8
