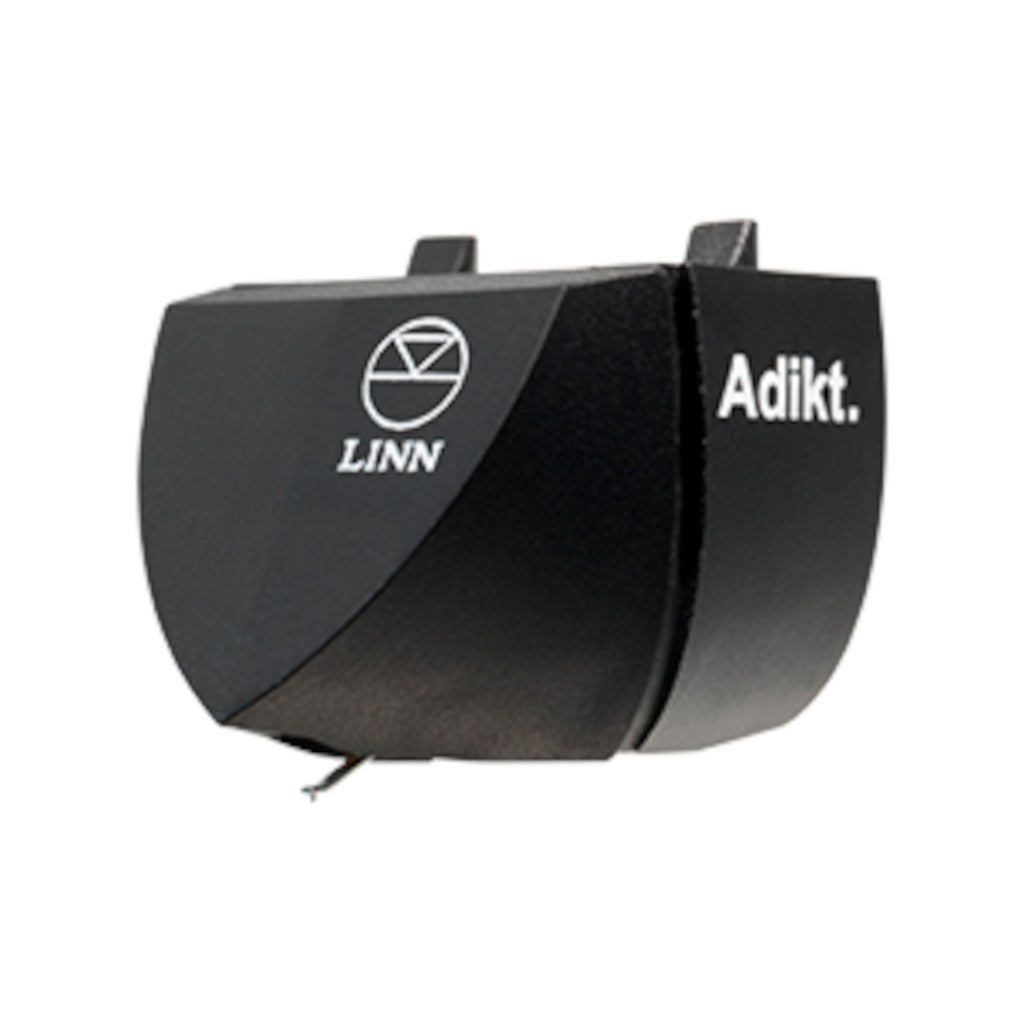

Linn Adikt MM Cartridge

• Adikt uses an efficient and affordable moving magnet (MM) configuration. This makes it an ideal starting point for any quality vinyl playback system and its performance is more than a match for many expensive moving coil (MC) designs.

• It features a rigid body and Gyger II replaceable stylus, both of which help towards a finely detailed and dynamic sound signature. It is easily mounted on a wide range of tonearms, including Krane and Arko.

• Adikt is fitted as standard to Majik LP12 MM.



• Technical Specifications
• Moving magnet cartridge
• Stylus type
  Gyger II (replaceable)
• Cantilever
  Aluminium tube
• Armature
  Former-less coil
• Pin Connection Type
  1.2 mm gold pin
• Mounting Points
  2
• Coil Wire
  Copper
• Output Voltage
  6.5mV @ 5cm/s
• Channel Balance at 1 kH
  z±2dB
• Channel Separation at 1kHz
  Better than 25dB
• Load Resistance
  47 kΩ
• Load Capacitance
  150–200 pF
• Tracking Force
  1.5–2.0 g
• Cartridge Mass
  8.25 g



Click here to download documentation from the manufacturer
