Dynaudio Evoke 50 Floorstanding Loudspeakers

• Evoke 50
• If a pair of Evoke 50s in a room doesn’t say “statement of intent”, we don’t know what does. Use them in stereo. Use them as part of an Evoke multi-channel home cinema system. However you listen to them, the word ‘epic’ won’t be far from your lips.
• Evoke 50 is a full three-way floorstander with a 28mm soft-dome tweeter, a 15cm neodymium midrange driver and twin 18cm woofers.
• Come in on a high note
• Evoke 50 features Dynaudio’s Cerotar tweeter. It’s a ground-up design that uses key technologies from the award-winning Esotar Forty anniversary tweeter, the awesome Contour series and the all-singing, all-dancing tech-fest that is Confidence. Our engineers are very proud of it. As well they should be.
• Just underneath the precision-coated dome sits an inner dome: the Hexis. This ingenious device is close enough to the back of the diaphragm that it stops unwanted resonant frequencies reflecting back to the rear of the playing surface. It smooths out the frequency response for clearer, cleaner, sweeter treble – meaning more detail, and more of those “hey, I don’t remember there being a triangle in this piece of music!” moments.
• The Cerotar is powered by a strontium carbonate Ferrite+ ceramic magnet system. That gives it more sensitivity, which, in musical terms, translates simply to ‘honesty’. You’ll hear just what you’re supposed to hear. And because it’s so smooth and natural, you can listen for hours without getting tired.
• Big bottom
• Down at the bottom are two 18cm Esotec+ woofers. Like the Cerotar tweeter, they use trickle-down technology from the Contour and Confidence families to bring as much of that high-end DNA to Evoke as possible.
• The woofers are made from our own proprietary material, MSP (Magnesium Silicate Polymer). We’ve been using it in our cones for decades – and we’ve yet to find anything that gives a better balance of lightness, stiffness and damping. If it ain’t broke…
• But while the Evoke 20 standmount speaker uses aluminium in its 18cm woofer, Evoke 50 uses copper. That’s because these are pure bass drivers – they don’t need the fleet-footed agility of a dedicated midrange unit, so we were able to give them more moving mass. The 0.4mm diaphragm is the same, though, as is the Ferrite+ ceramic magnet. That means power and detail. It’s just one of the solutions arrived at through extensive analysis and simulation in our Jupiter measuring facility.
• Each speaker cone is crafted from a single piece of MSP. This makes them exactly the right amount of rigid – and means far less physical distortion when they’re playing. It also gives a super-solid physical connection to the glass-fibre voice-coil former on the back (it’s glued directly under the Balance Ribs you’ll see around the centre), which means more of the coil’s motion energy is transferred to the diaphragm.
• Aramid fibre spiders keep everything centred and moving the way it should, while the Contour-derived surround allows a longer throw ratio for greater punch.
• And, for extra versatility – if you rearrange your room or move house, for example – the rear-firing bass ports have two-part foam plugs. They offer three levels of tuning: fully open, half-open and fully closed, so you can tailor the speakers’ bass performance to their position and your room.
• Dedicated midrange
• Evoke 50 is the only speaker in the family to have a dedicated midrange driver, so the engineers in Dynaudio Labs decided to make it a little bit special. The 15cm unit they chose is derived directly from the high-end Contour range – which means a powerful neodymium magnet, a 0.4mm-thin diaphragm and a glass-fibre voice-coil former with a trademark Dynaudio aluminium voice-coil.
• Why neodymium and not the Ferrite+ of the woofers? Because it’s light, and it’s powerful. Why aluminium and not copper? Again, because it’s light (and lets us put more windings in the voice-coil for a given weight). That’s a combination that gives our team amazing control over how the driver responds – they were able to fine-tune it to integrate perfectly with the woofers and tweeter.
• In fact, the Evoke team did such a good job that you essentially are getting Contour-level performance out of this midrange driver.
• Simple, honest style
• Creating a speaker this large without making it seem bulky and boxy is no mean feat – but lead designer Louise Dalgaard met the challenge head on. And then she knocked it out of the park. Evoke 50 was the first in the range to be committed to paper (and then to 3D modelling program, to clay model, to full MDF prototype and finally to The Real Thing).
• Louise and her team were adamant that Evoke 50 had to be realistic for real homes and real lives. They drew inspiration from furniture designers, interior-design showcases, show homes, and even sniffed around real-life dwellings to get the look just right.
• The result is an instant classic. It’s modern, retro, timeless and cutting-edge all at once. It’s the kind of speaker you’ll still be looking at in 30 years, and thinking to yourself that it makes the rest of your belongings look a little humdrum by comparison.

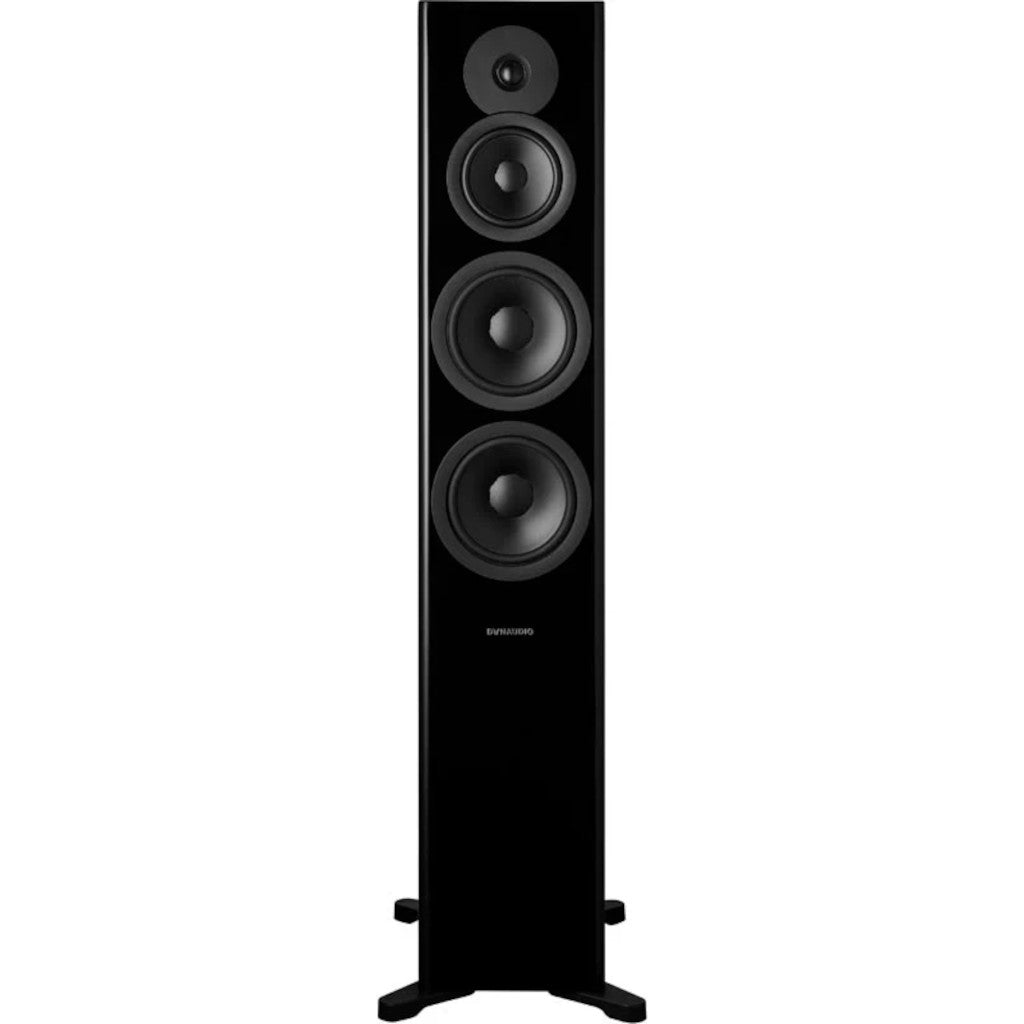

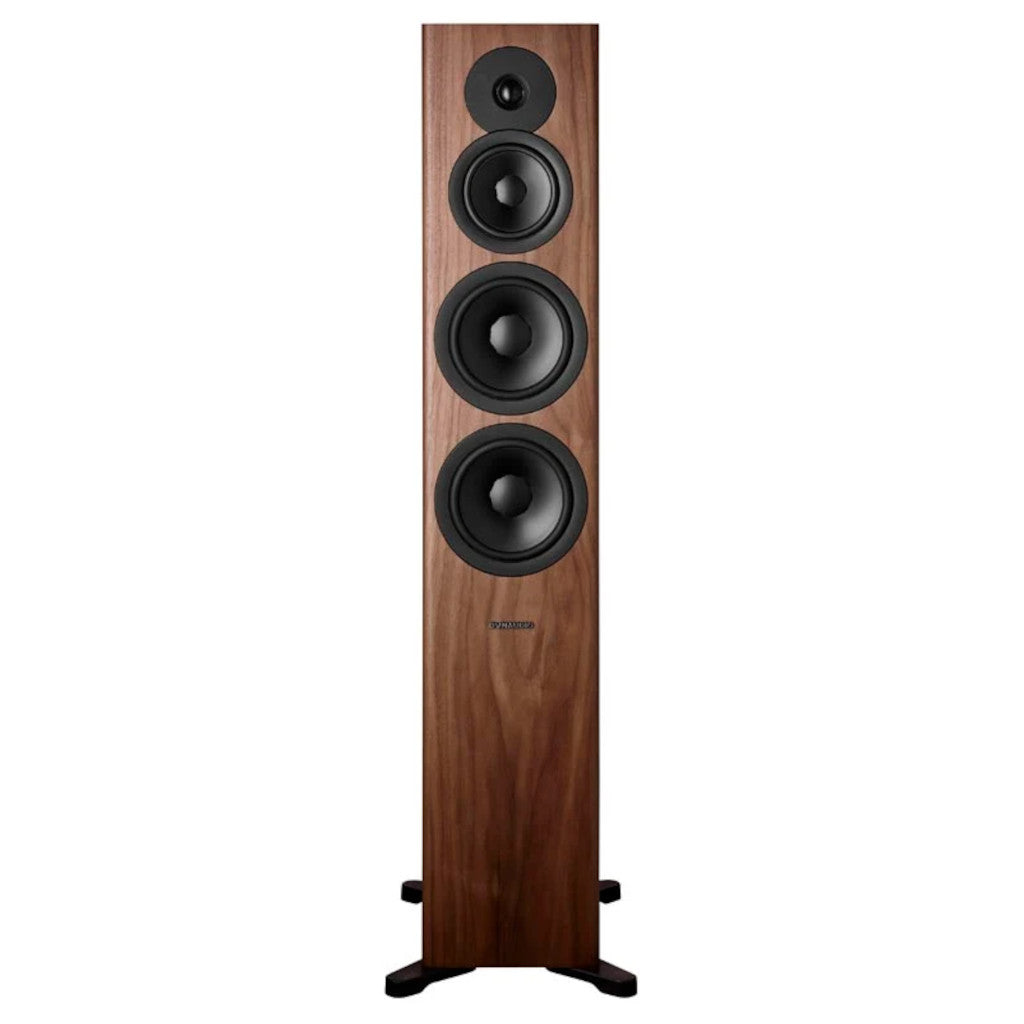

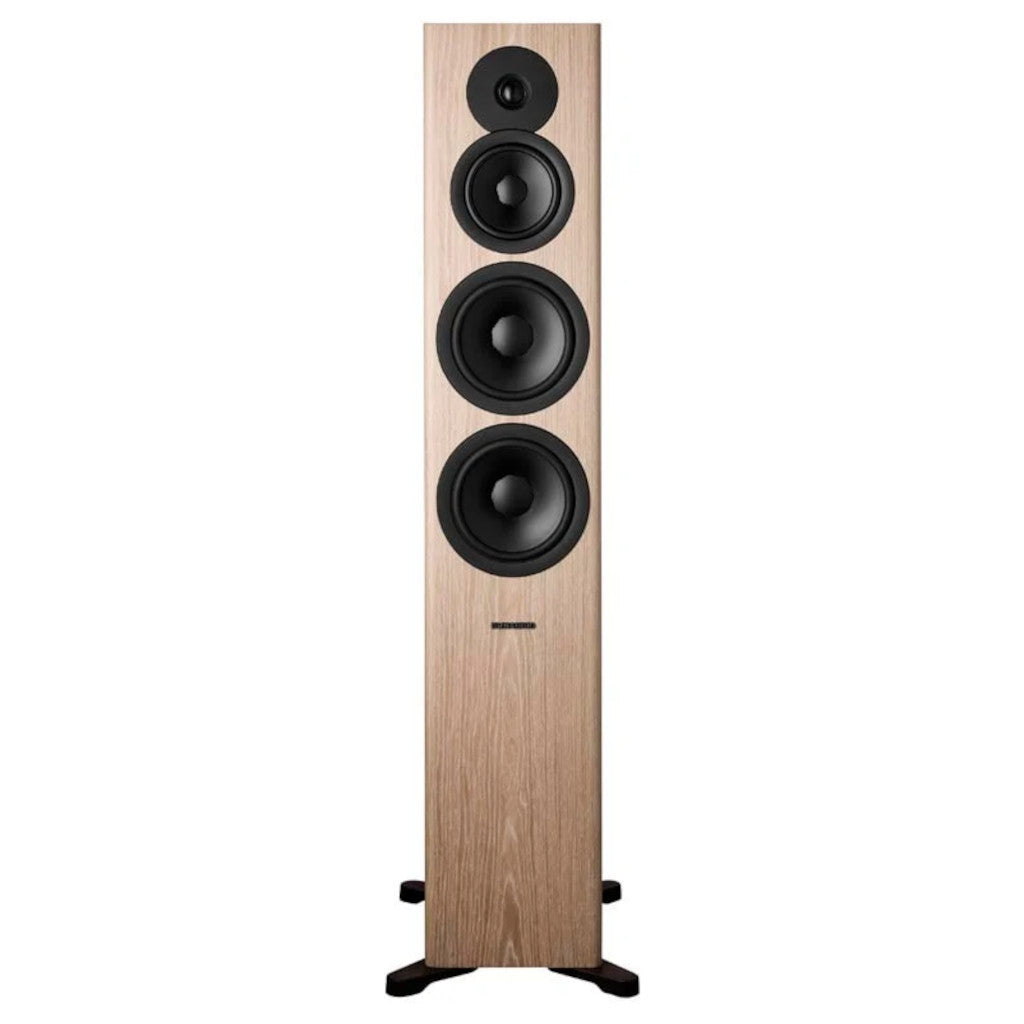

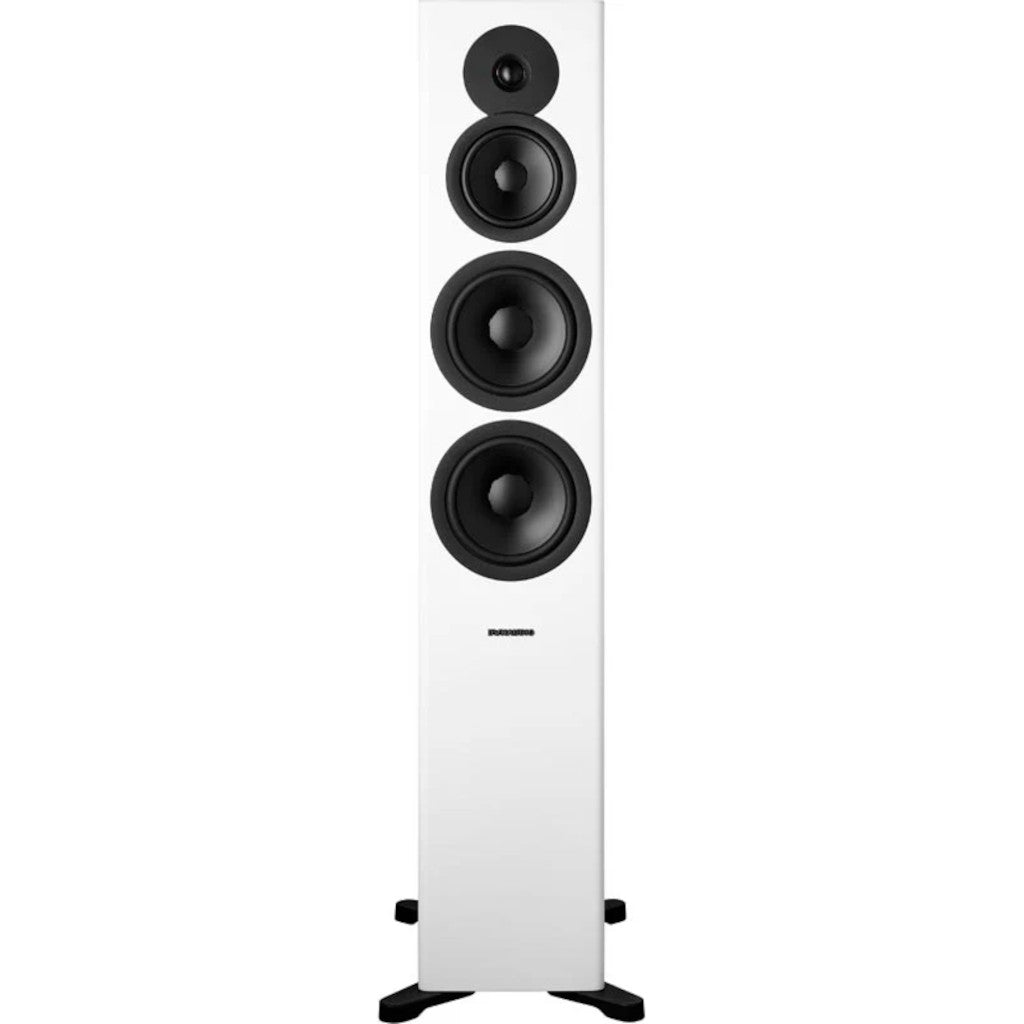

• Evoke 50 is available in four beautiful finishes. Black High Gloss and White High Gloss both use a lacquering technique that gives a gloriously deep, glass-like look. At the other end of the tactile spectrum are the lovely open natural veneers of Walnut Wood and Blonde Wood.
• Plug them in and rediscover your love of music.
  Cerotar tweeter
• A 28mm precision-coated soft-dome design derived directly from the award-winning Special Forty and the mighty Confidence series. The motor system uses strontium carbonate Ferrite+ ceramic magnets for improved sensitivity.
• The Hexis
• An ingenious inner tweeter dome that further smooths out the tweeter’s frequency response and minimises resonances – so all you get are the desirable ones. You’ll also find Hexis in Confidence.
• Esotec+ woofers
• Updated long-throw designs for improved frequency response and low-frequency dynamics. They’re all made from MSP – a material we developed in-house and have used in our high-quality drivers for decades.
• Timeless Danish design
• Simple, clean, traditional, modern and luxurious. All at once. We’ve made sure Evoke is realistic for, and sympathetic with, real homes and real lives. It’s available in four finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood.
• Neodymium midrange
• A 15cm MSP driver derived directly from the Contour range. True high-end midrange performance
• Versatile bass ports
• Two-part plugs mean you can tune bass response precisely for your room and tastes

• Status Current
• Segment Home
• Series Evoke
• Type Floorstanding
• Sensitivity (dB @ 2.83V/1m) 87
• IEC Power Handling (W) 260
• Rated Impedance (Ohm) 4
• Minimum Impedance (Ohm) 3 ohm minimum @100 HZ
• Lower Cutoff (Hz @ +/- 3 dB) 35
• Upper Cutoff (kHz @ +/- 3 dB) 23
• Box Principle Bass reflex rear ported
• Crossover 3-way
• Crossover Frequency (Hz) 430/3500 Hz
• Crossover Topology 3rd/2nd order
• Tweeter 28mm Cerotar soft dome with Hexis
• Midrange 15 cm MSP
• Woofer 2x 18 cm MSP
• Weight kg 26,9
• Weight lbs 59.3
• Width mm 215
• Height mm 1140
• Depth mm 307
• Width inches 8 4/8
• Height inches 44 7/8
• Depth inches 12 1/8
• Width mm incl. feet/grill 305
• Height mm incl. feet/grill 1162
• Depth mm incl. feet/grill 373
• Width inches incl. feet/grill 12
• Height inches incl. feet/grill 45 6/8
• Depth inches incl. feet/grill 14 5/8
• Packaged Width mm 1324
• Packaged Height mm 459
• Packaged Depth mm 352
• Packaged weight kg 33
• Speakers per packaged box 1
• Grille Black
