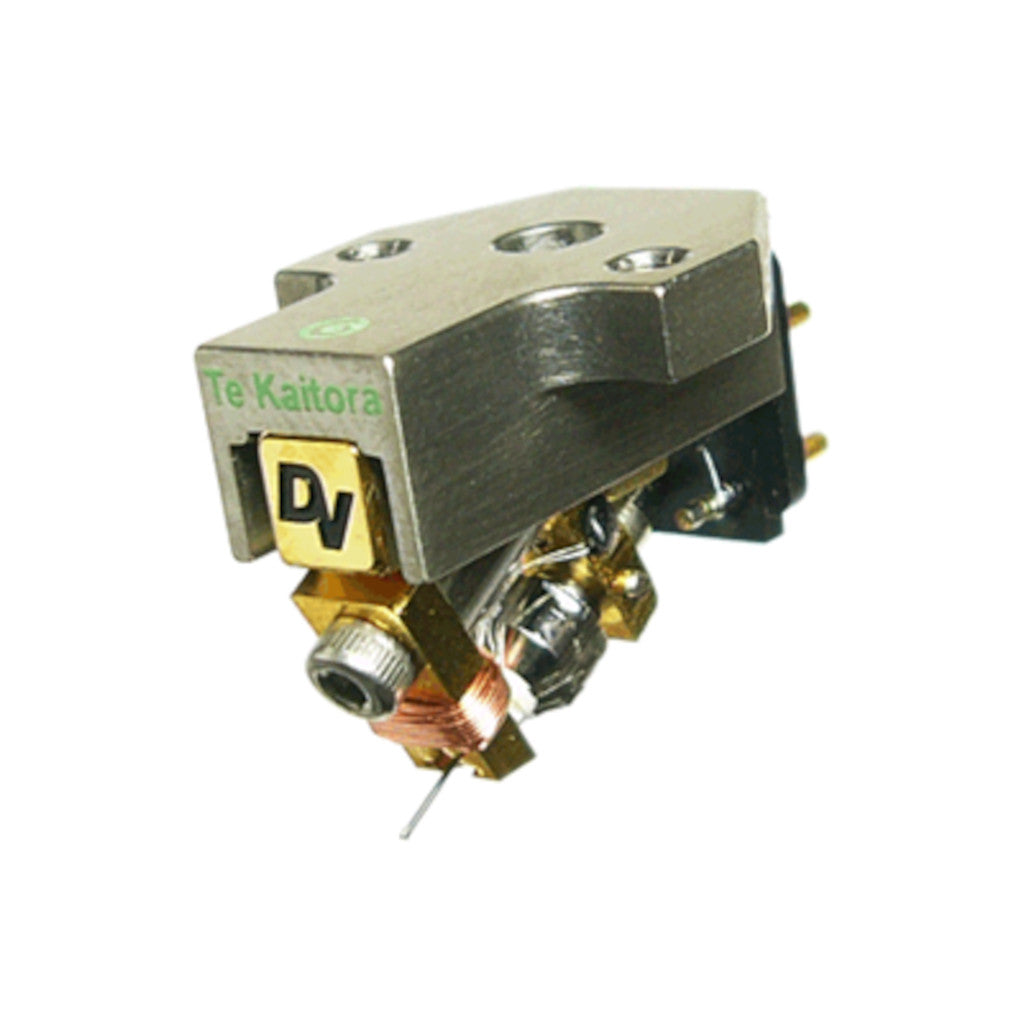

Dynavector Te Kaitora Rua MC Cartridge

• The original Te Kaitora cartridge was the result of collaboration between Dynavector Japan and Dynavector New Zealand. The Te Kaitora allowed analogue enthusiasts to embark on a voyage of discovery to the outer limits of vinyl reproduction.
• The improved Te Kaitora Rua continues the journey by incorporating many of the newest features of its Dynavector stable-mates, the XV-1s and XX-2. The Te Kaitora Rua has even managed to improve on the original's silk-like treble and openness.
• Note: Te Kaitora means "The Discoverer" in the language of the NZ Maori people, Rua, is "the second version".
• The wire for the coil has been changed to the PCOCC copper wire from the silver wire. It sounds a much smoother and has a much better musical performance.
• A titanium headpiece for maximum ridgity along with a miniature stainless steel bolt coupling the front and rear yokes to the magnetic circuit assembly.
• A 6mm long boron cantilever with the Pathfinder (PF) line contact stylus as used with both Dynavector XV-1s and XX-2.
• The ingenious square shaped armature and matching square shaped aperture in the front yoke providing much improved linearity in the magnetic flux distribution.
• Alnico magnets are used for high magnetic flux density.

• Type
  low output moving coil cartridge
  with flux damper and alnico magnet
• Output Voltage
  0.26 mV (at 1KHz, 5cm/sec.)
• Channel Separation
  30 dB (at 1KHz)
• Channel balance
  1.0 dB (at 1KHz)
• Frequency response
  20 - 20,000 Hz（±1dB）
• Compliance
  10 mm/N
• Tracking force
  1.8 - 2.2 g
• Impedance
  6 ohms
• Recommended load impedance
  > 30 ohms
• Cantilever
  6mm length solid boron
• Stylus tip
  PF Line contact shape,
• stylus radius:
  7 x 30 micron
• Weight
  9.8 g



Click here to download the manual from the manufacturer
