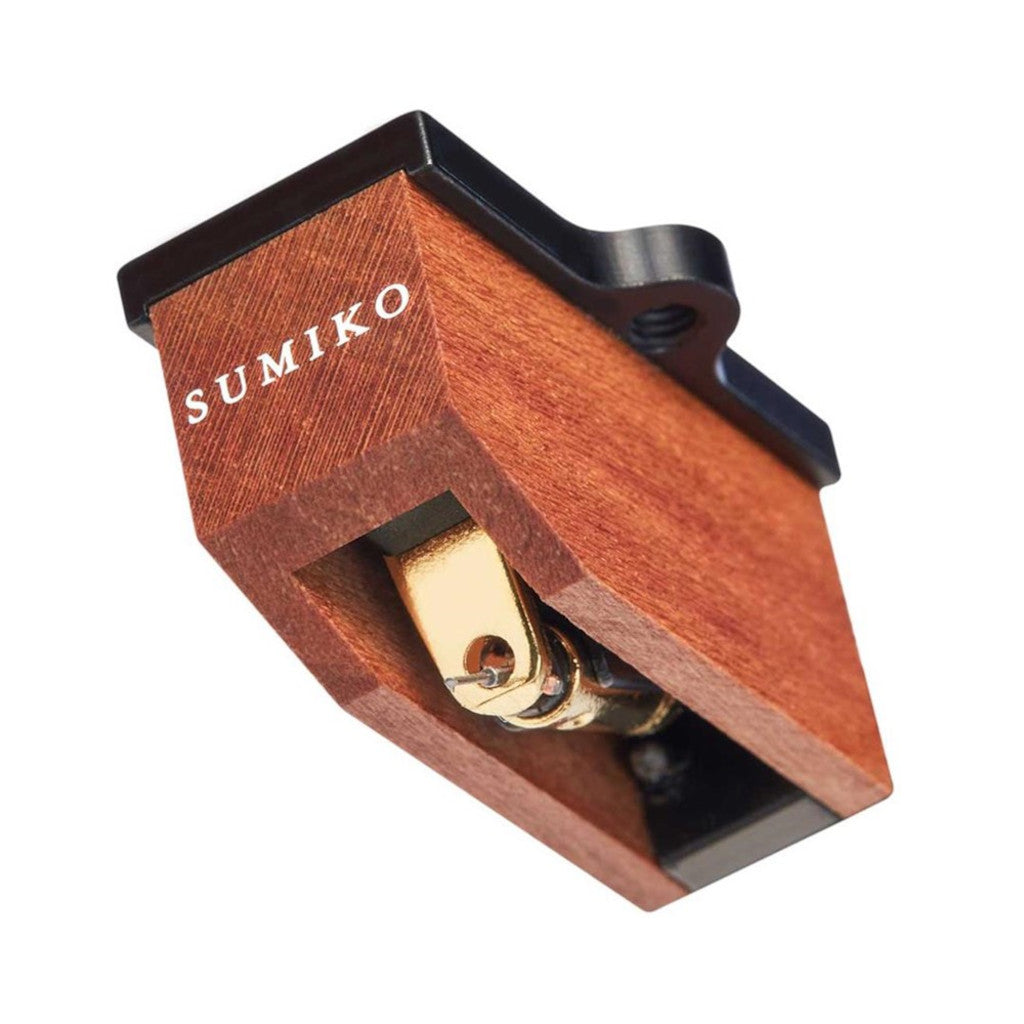

Sumiko Celebration 40 MC Cartridge

• Hand fitted with a luxurious plumwood body, inspired by previous Sumiko designs, the Celebration 40 was created to commemorate the company?s four decades in the cartridge business.
• Clear, yet relaxed, musical presentation
• Overhead mounting cartridge for installing into a headshell
• Moving Coil cartridge design
• Luxurious Plumwood body has exceptional anti-resonance characteristics
• Nude Line-Contact diamond stylus profile
• CELEBRATING EXCELLENCE
  With its micro-ridge stylus and the blend of other cutting-edge materials, the Celebration 40 is a true high-end design guaranteed to impress.  The mechanical foundation for the intricate workings of the Celebration 40 is a unique machined alloy “cradle”, into which the entire generator system of the cartridge is fitted. Within this structure, the sophisticated magnet system is housed. The result of this assembly is a solid brass foundation and very wide dynamics alongside a vast open soundstage, a natural and pure midrange, and high frequencies that are extended but never bright. The long-grain boron cantilever employed in the Celebration 40 provides class-leading energy transfer from the stylus to the coils. Further, the specially devised rubber suspension system is tuned for an optimised acoustic performance and extended cartridge life.
• EXCELLENCE IN SOUND
  Celebration 40 now implements the same solid, ultra-low-mass 75µm x 2.5µm Microridge stylus as the flagship Palo Santos Presentation. Its prevailing characteristics are rich, smooth and warm, yet it retains a clarity and precision that defies its tonal character. The result is a cartridge listeners can escape into for hours on end without fatigue. The Microridge also tracks like few others are capable, navigating the record groove with ease. Musicality, emotion, bass depth and slam with mid/high sweetness are all on offer, in the truest spirit of Sumiko phono cartridges. The luxurious plumwood body, chosen for its ideal resonance characteristics, brings refinement to the sound while its angled front panel provides clear line of sight during cartridge installation. After assembly at Sumiko’s long standing Japanese factory, final adjustments are calibrated for your enjoyment. The Celebration 40, not only celebrates the many years of Sumiko’s existence, it represents many decades of analogue excellence.

• OUTPUT VOLTAGE (@ 3.54CM/S)
  0.5 mV
• CHANNEL BALANCE (@ 1000HZ)
  0.5 dB
• CHANNEL SEPARATION (@ 1000HZ)
  30 dB
• CHANNEL SEPARATION (@ 15000HZ)
  20 dB
• FREQUENCY RANGE (@ -3DB)
  6000 Hz
• FREQUENCY RESPONSE
  10 - 50000 dB
• TRACKING ABILITY
  (@ 315HZ AT RECOMMENDED TRACKING FORCE)
  70 μm
• COMPLIANCE, DYNAMIC, LATERAL
  12 μm
• STYLUS TYPE
  Ultra low-mass Microridge Line Contact
• TRACKING FORCE RANGE
  1.9 - 2.2 g
• RECOMMENDED TRACKING FORCE
  2.0 g
• TRACKING ANGLE
  20 °
• INTERNAL IMPEDANCE
  35 Ω
• INTERNAL INDUCTANCE
  0.035 mH
• MAGNET TYPE
  Alnico
• CANTILEVER MATERIAL
  0.28⌀ Boron Shaft
• COIL WIRE MATERIAL
  Pure Copper
• RECOMMENDED LOAD IMPEDANCE
  100 - 1000 Ω
• RECOMMENDED LOAD CAPACITANCE
  100 - 200 pF
• CARTRIDGE WEIGHT
  7.0 g




Click here to download documentation from the manufacturer
