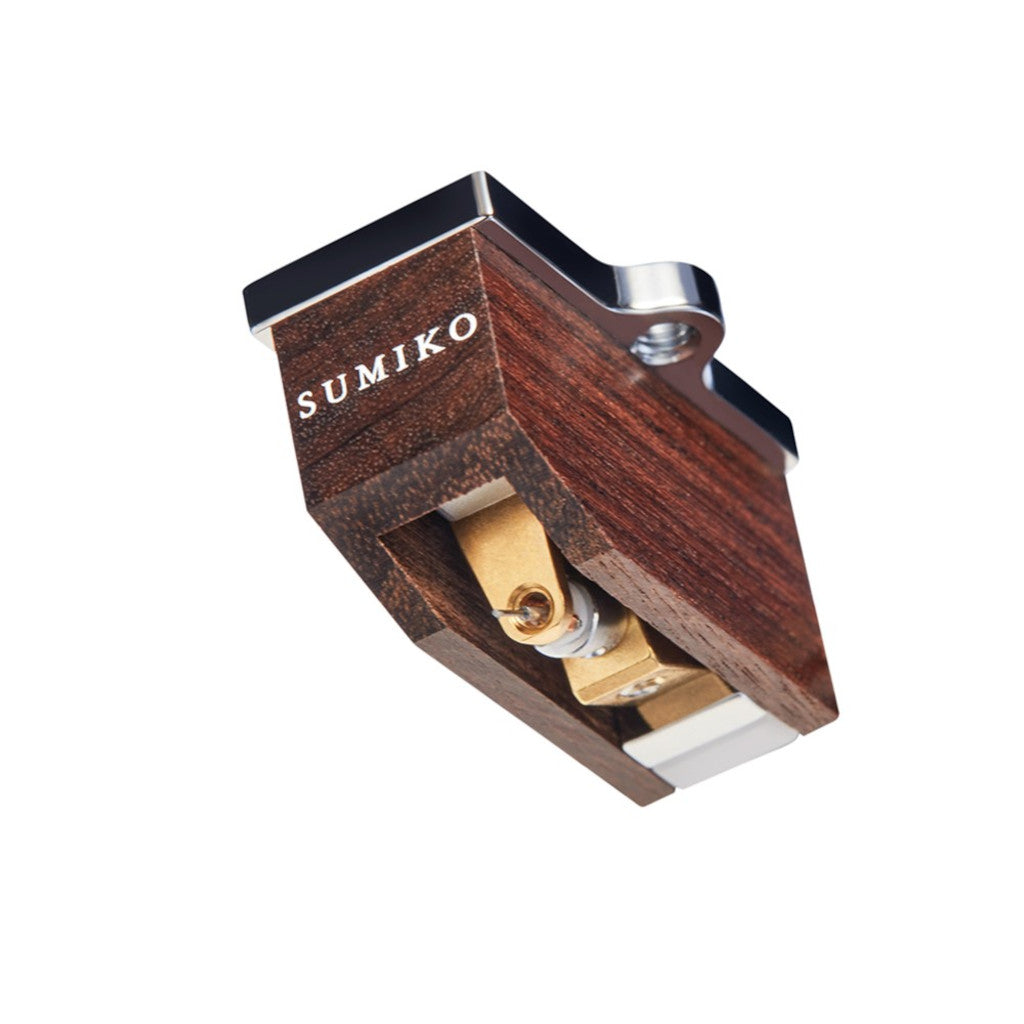

Sumiko Palo Santos Presentation MC Cartridge

• The Palo Santos Presentation is a flagship in every sense. Through its luxurious Brazilian Rosewood body it exudes classic style and delivers a truly exceptional sonic performance that marks Sumiko as a worthy player in the high-end arena.
• Reference level sound with previously unrealised sonic imagery
• Overhead mounting cartridge for installing into a headshell
• Moving Coil cartridge design
• Luxurious Brazilian Rosewood outer body
• Nude Line-Contact diamond stylus profile
• DESIGNING A LEGEND
  Within its wooden body sits the intricate workings of the Palo Santos, including a bespoke generator anchoring system that houses a sophisticated magnet system, utilising an Alnico magnet with linear density to ensure the cartridge delivers a vast open soundstage, a natural and pure midrange, and high frequencies that are extended but never bright. The whole system has substantially improved rigidity and reduces resonance and background noise to previously unheard of levels.
  The long-grain boron cantilever employed in the Palo Santos provides class-leading energy transfer from the stylus to the coils. Further, the synthetic rubber suspension system is tuned so the hardness and repulsion factor are optimised for a controlled acoustic performance over a long lifespan.
  The industry-leading Palo Santos design results in a combination of superior dynamics and excellent long term tracking ability. When finished with the sophisticated, specially ground Microridge Line-Contact stylus, incredible amounts of detail can be extracted from the record groove. PH styli boast a precision polish and clarity that is legendary in cartridge design circles, lending a sweetness to the sound that can't be found at a lower cost.
• MADE WITH PRIDE TO REFLECT PERFECTION
  As it's part of the Reference Series, the Palo Santos is painstakingly crafted by hand in a process that involves hours of labour. After assembly, final adjustments are made using a battery of test records, and performance is hand-calibrated for your enjoyment.
  The sound of the Palo Santos Presentation is the product not only of Sumiko’s many years experience in fine sound, but also of their continuing desire to reveal the vibrant and exciting colours of the analogue spectrum.



• OUTPUT VOLTAGE (@ 3.54CM/S)
  0.5 mV
• CHANNEL BALANCE (@ 1000HZ)
  < 0.5 dB
• CHANNEL SEPARATION (@ 1000HZ)
  > 30 dB
• CHANNEL SEPARATION (@ 15000HZ)
  20 dB
• FREQUENCY RANGE (@ -3DB)
  6000 Hz
• FREQUENCY RESPONSE
  10 - 50000 dB
• TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE)
  70 μm
• COMPLIANCE, DYNAMIC, LATERAL
  8 μm
• STYLUS TYPE
  Ultra low-mass Microridge Line Contact
• TRACKING FORCE RANGE
  1.8 - 2.2 g
• RECOMMENDED TRACKING FORCE
  2.0 g
• TRACKING ANGLE
  20 °
• INTERNAL IMPEDANCE
  12 Ω
• INTERNAL INDUCTANCE
  0.04 mH
• MAGNET TYPE
  Alnico
• CANTILEVER MATERIAL
  0.28⌀ Boron Shaft
• COIL WIRE MATERIAL
  Pure Copper
• RECOMMENDED LOAD IMPEDANCE
  100 - 1000 Ω
• RECOMMENDED LOAD CAPACITANCE
  100 - 200 pF
• CARTRIDGE WEIGHT
  8.3 g
