Ortofon MC90X MC Cartridge

Ortofon MC90X MC Cartridge

£3,999.00
/
Tax included. Shipping calculated at checkout.
  • Free UK shipping
  • Collection in store available

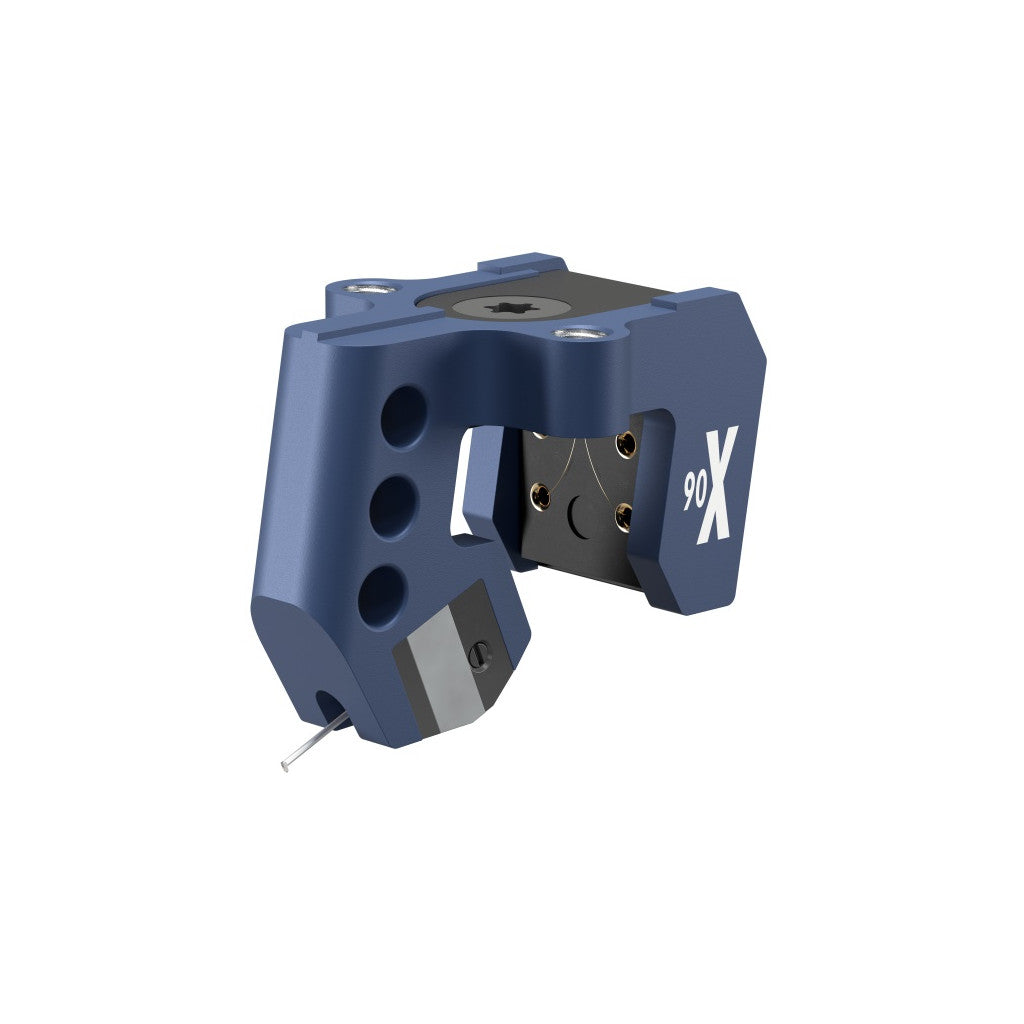

Celebrating the lineage of the iconic MC A90, the MC 90X is a reimagining of a classic, combining precision engineering with advancements in material science and magnetism. Designed to bring out the depth and detail in every record, this limited-edition cartridge builds on Ortofon’s expertise in analogue sound reproduction while introducing improved rubber dampers and a striking new blue finish.

  • Though it features common Exclusive Series technologies, such as Ortofon's Wide Range Damping system and the industry-leading Replicant 100 diamond stylus, the MC 90X is unique because it uses SLM technology with stainless-steel, rather than titanium, for its main body structure.
  • We have the cartridge on order now, and expect to ship out during mid-March. We also plan to present the cartridge for the first time at next month's Audio Show Deluxe.

  • Specifications
  • Output voltage at 1 kHz, 5cm/sec0.2 mV
  • Channel seperation at 1 kHz25 dB
  • Channel seperation at 15 kHz20 dB
  • Frequency response 20 Hz - 20 kHz+2 dB/-1 dB
  • Tracking ability at 315Hz at recommended tracking force80 μm
  • Compliance, dynamic, lateral13 μm/mN
  • Stylus typeSpecial polished Nude Ortofon Replicant 100 on Diamond cantilever
  • Stylus tip radiusr/R 5/100 μm
  • Tracking force range2.5 – 2.8 g (25-28 mN)
  • Tracking force, recommended2.6 g (26mN)
  • Tracking angle23°
  • Internal impedance, DC resistance7 Ω
  • Recommended load impedance10 Ω
  • Cartridge body materialSLM Titanium
  • Cartridge colourSilver
  • Cartridge weight9.5 g
