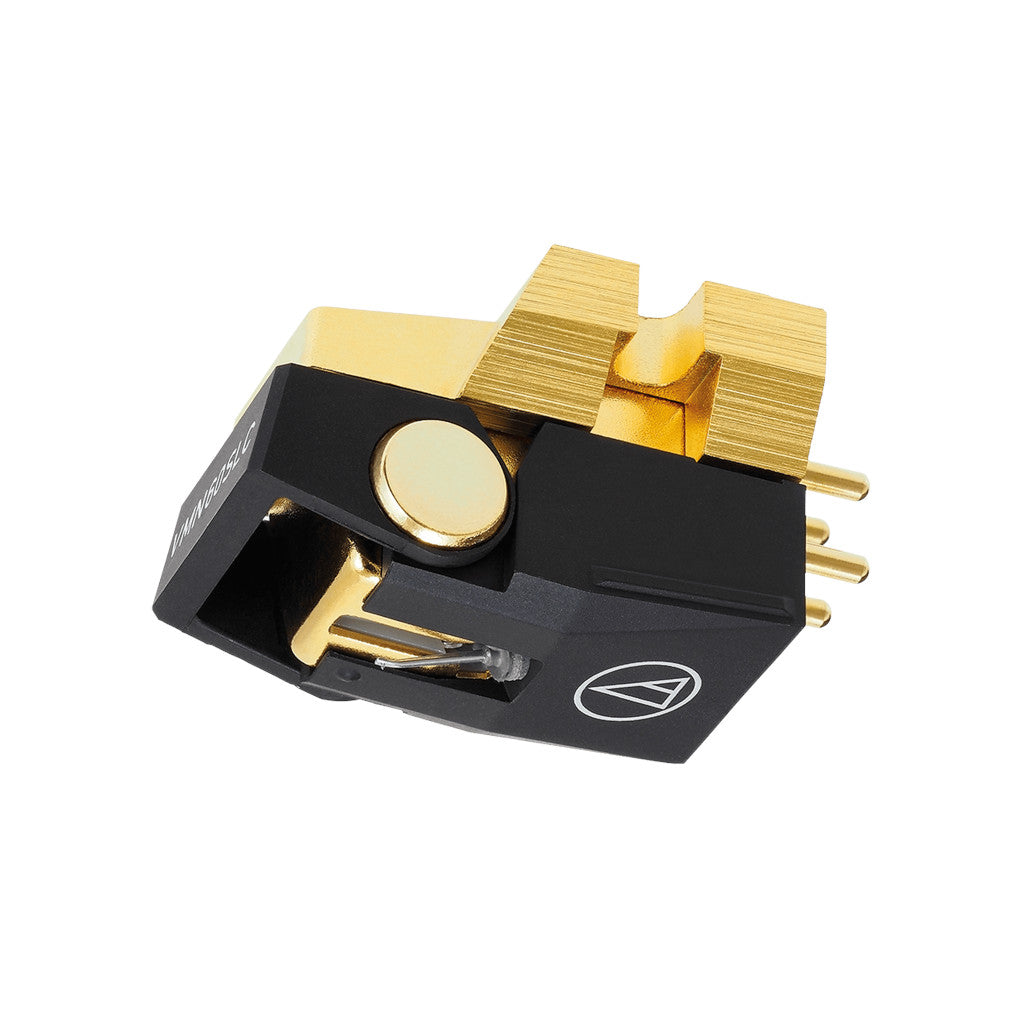

Audio Technica VM760SLC MM Cartridge

• VM760SLC
• Dual Moving Magnet Stereo Cartridge
• Using an ultra-lightweight stylus tip ground to a high level of precision, we have achieved a combination of low distortion rate with fuller frequency reproduction during playback. This stylus tip extracts every possible piece of information from the grooves on a record.
• Aluminium tapered cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
• Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.
• Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
• Para-toroidal generating system
• Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.
• Centre shield plate reduces crosstalk
• A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB.
• This is similar to the actual crosstalk value found in the grooves of the record itself.
• 700 Series
• Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli.
• Special Line Contact Stylus
• Special Line Contact with diamond stylus construction has the ability to track the most complex record groove.



• Cartridge & Stylus
• Frequency Response
  20 - 30,000Hz
• Channel Separation
  30dB (1kHz)
• Vertical Tracking Angle
  23˚
• Vertical Tracking Force
  1.8 to 2.2g (2.0g standard)
• Stylus Construction
  Nude Rectangular Shank
• Recommended Load Impedance
  47,000Ω
• Coil Impedance
  2,700Ω (1kHz)
• Output Voltage
  4.0mV (1kHz, 5cm/sec.)
• Output Channel Balance
  1.0dB (1kHz)
• Stylus Shape
  Special Line Contact
• Cantilever
  Aluminium Tapered Pipe
• Static Compliance
  40 x 10-6 cm/dyne
• Dynamic Compliance
  10 x 10-6 cm/dyne (100Hz)
• Mounting
  1/2” centres
• Dimensions
  17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Accessories Included
  Cartridge installation screws 5mm ×2 and 10mm ×2,
  Washer ×2,
  Hexagon nut ×2,
  Non-magnetic screwdriver ×1,
  Brush ×1,
  Lead wire set ×1
• Recommended Load
  Capacitance
  100 – 200pF
• Replacement Stylus
  VMN60SLC
• Stylus Size
  0.28 x 1.5 mil
• Type
  VM Type
• Weight
  8.0g
