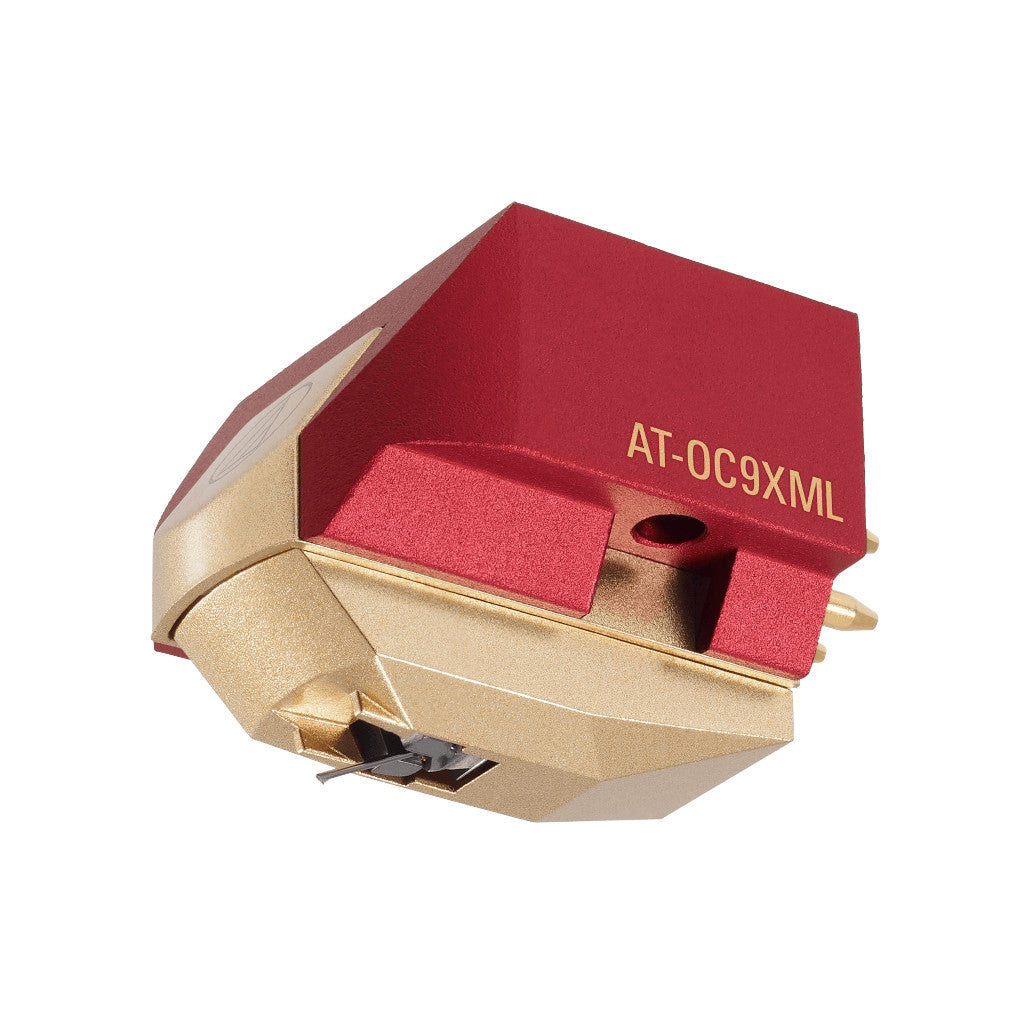

Audio Technica AT-OC9XML MC Cartridge

• AT-OC9XML
• The next Generation of the legendary OC9 cartridge series
• Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Microlinear complex diamond profile enabling higher frequency response, detail like never before experienced and limiting inner groove distortion. Microlinear diamond profile provides low record and stylus wear.
• Features nude Microlinear stylus and boron cantilever which provides lower distortion and high transient response
• A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
• Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
• Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
• Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
• Microlinear Stylus
• Microlinear diamond profile offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli.
• Easy mounting
• Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.
• Aluminium Body
• Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
• Made in Japan
• Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.


• Cartridge & Stylus
• Frequency Response
  20 - 47,000 Hz
• Channel Separation
  27 dB (1 kHz)
• Vertical Tracking Angle
  20 degrees
• Vertical Tracking Force
  1.8 to 2.2 g (standard 2.0 g)
• Stylus Construction
  Nude square shank
• Recommended Load Impedance
  Min 100 Ohms
• Coil Impedance
  12 Ohms (1 kHz)
• DC Resistance
  12 Ohms
• Coil Inductance
  25 μH (1 kHz)
• Output Voltage
  0.4 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance
  1.0 dB (1 kHz)
• Stylus Shape
  Microlinear
• Cantilever
  0.28 mm Ø nude boron
• Static Compliance
  20 x 10 – 6 cm / dyne
• Dynamic Compliance 16 x 10 – 6 cm / dyne (100 Hz)
• Mounting
  1/2” centers / Threaded
• Cartridge Weight 7.6 g
• Dimensions
  17.3 (H) x 16.8 (W) x 25.7 (L) mm
• Accessories Included
  1 non magnetic screw driver
  1 brush
  2 washers
  4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  1 plastic protector
• Body Material
  Aluminium
• Model
  AT-OC9XML
• Stylus Size
  2.2 x 0.12 mil
• Terminal Pins
  Brass
• Wire Used for Coil
  PCOCC (Copper by Ohno Continuous Casting process.)
