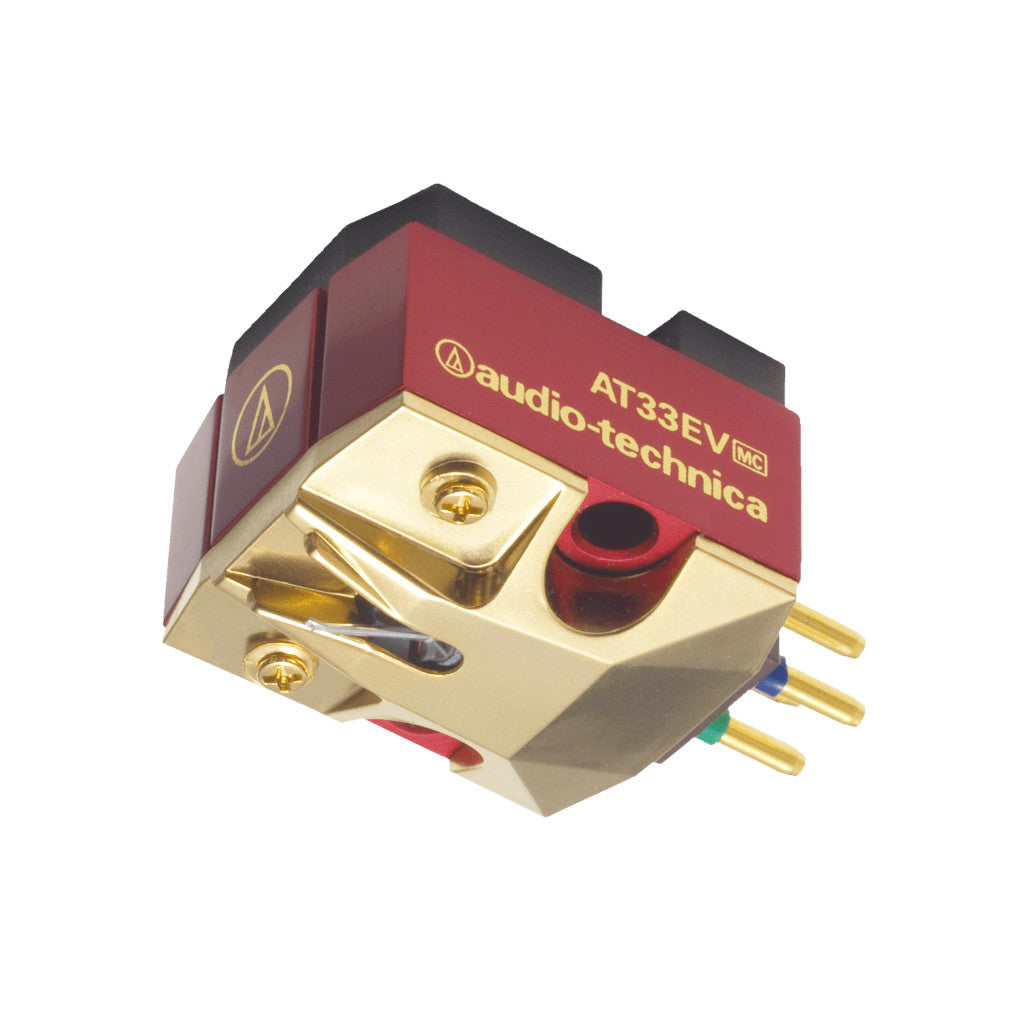

Audio Technica AT33EV MC Cartridge

• AT33EV
• Moving Coil Cartridge
• The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate our 45th anniversary. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, we present a further improved and evolved model.
• The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.
• Elliptical stylus chip and durable duralumin tapered pipe cantilever
• 10O mid impedance specifications
• Dramatically increased magnetism with neodymium magnets and PCOCC as the coil
• High separation, wide-response dual moving coil
• VC Mold eliminates unnecessary vibrations
• "Hanenite" anti-vibration rubber eliminates unwanted vibrations
• “Minimises unnecessary vibration”
• ‘Hanenite’ is used in the housing interior and the cantilever fulcrum support to minimize unnecessary vibration, to allow the outstanding basic performance of the dual moving coil to fully express itself.
• “Ability to richly reproduce sounds”
• Elliptical stylus chip, embedded into a hard duralumin tapered pipe cantilever, has the ability to richly reproduce sounds in the medium and low ranges. With its outstanding machine strength, the duralumin cantilever is tough enough for the job and produces natural sounds without distortion.


• Cartridge & Stylus
• Frequency Response
  15 - 50,000Hz
• Channel Separation
  30dB (1kHz)
• Vertical Tracking Angle
  23°
• Vertical Tracking Force
  1.8 to 2.2 g (standard 2.0 g)
• Stylus Construction
  Nude Square Shank
• Recommended Load Impedance
  More than 100Ω (when head amp connected)
• Coil Impedance
  10Ω (1kHz)
• DC Resistance
  10Ω
• Coil Inductance
  22µH (1kHz)
• Output Voltage
  0.3mV (1kHz and 3.54cm/sec.)
• Output Channel Balance
  0.5dB (1kHz)
• Stylus Shape
  Elliptical
• Cantilever
  Duralumin
• Static Compliance
  40×10-6cm/dyne
• Dynamic Compliance
  10×10-6cm/dyne (100Hz)
• Mounting
  1/2" Centers
• Dimensions
  H16×W16.6×D26.5mm
• Accessories Included
  Non-magnetic screwdriver × 1,
  Washer × 2,
  Protector × 1,
  Cartridge installation screws 13 mm × 2 and 19 mm × 2,
  Nut × 2,
  Brush × 1,
  PCOCC lead set × 1
• Body Material
  Aluminium/Synthetic Resin
• Stylus Curvature Radius
  0.3 x 0.7 mil
• Terminal Pins
  Brass
• Type
  Dual Moving Coil
• Weight
  6.9g
