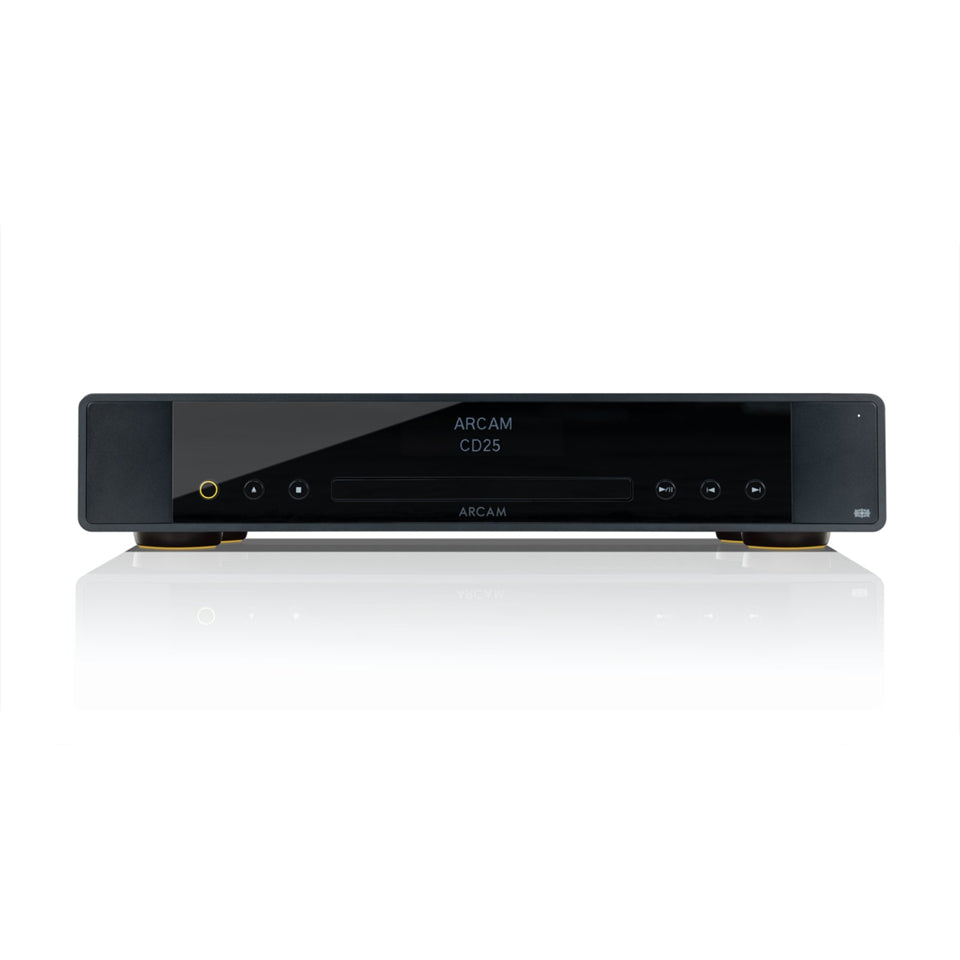

Arcam CD25 CD Player

• The ARCAM CD25 is a high-performance CD player developed from nearly four decades of ARCAM digital audio expertise. It combines precision engineering with modern circuit design to deliver exceptional Compact Disc playback.

• The CD25 features a low-noise linear power supply and a Compact Disc mechanism mounted on an internal vibration-damping chassis for stable, accurate signal retrieval. Digital-to-analogue conversion is handled by a dual-mono DAC design using two ESS ES9039Q2M DAC chips with ESS reference voltage regulators. Each DAC independently processes one channel in balanced mode, ensuring excellent channel separation and low noise.

• Balanced XLR outputs make the CD25 an ideal partner for the ARCAM A50 Signature and SA45, while line-level RCA outputs allow seamless integration with the A25+ and SA35. The result is the best-sounding CD player ARCAM has ever produced.

• Dual-Mono DAC Architecture - Independent left and right channel processing delivers superior channel separation, lower noise, and a more precise, spacious stereo image
• Low-Noise Linear Power Supply - Provides a stable, ultra-quiet electrical foundation, allowing fine musical detail and dynamic contrast to emerge clearly
• Vibration-Damped Disc Mechanism - Minimises mechanical interference for cleaner data retrieval, improving timing accuracy, clarity, and overall musical coherence
• Balanced and RCA Analogue Outputs - Ensures optimal system matching, whether using fully balanced Radia Series amplifiers or conventional line-level inputs.
• ARCAM-Tuned via Blind Listening Tests - Combines objective accuracy with musical engagement, ensuring sound quality that is both technically precise and emotionally involving
• Plastic free packaging - for easy disposal or natural materials



• Playback
• Supported media: CD (Audio), CD-R (Audio / Data), CD-RW (Audio / Data)
  Supported files (Data): WAV (LPCM), FLAC, MP3, AAC
  Supported Bit depth: 16 bit – 24 bit
  Supported sample rates (kHz): 96, 88.2, 48, 44.1, 32 kHz (WAV & FLAC only), 48, 44.1, 32 kHz (MP3/AAC)

• Outputs

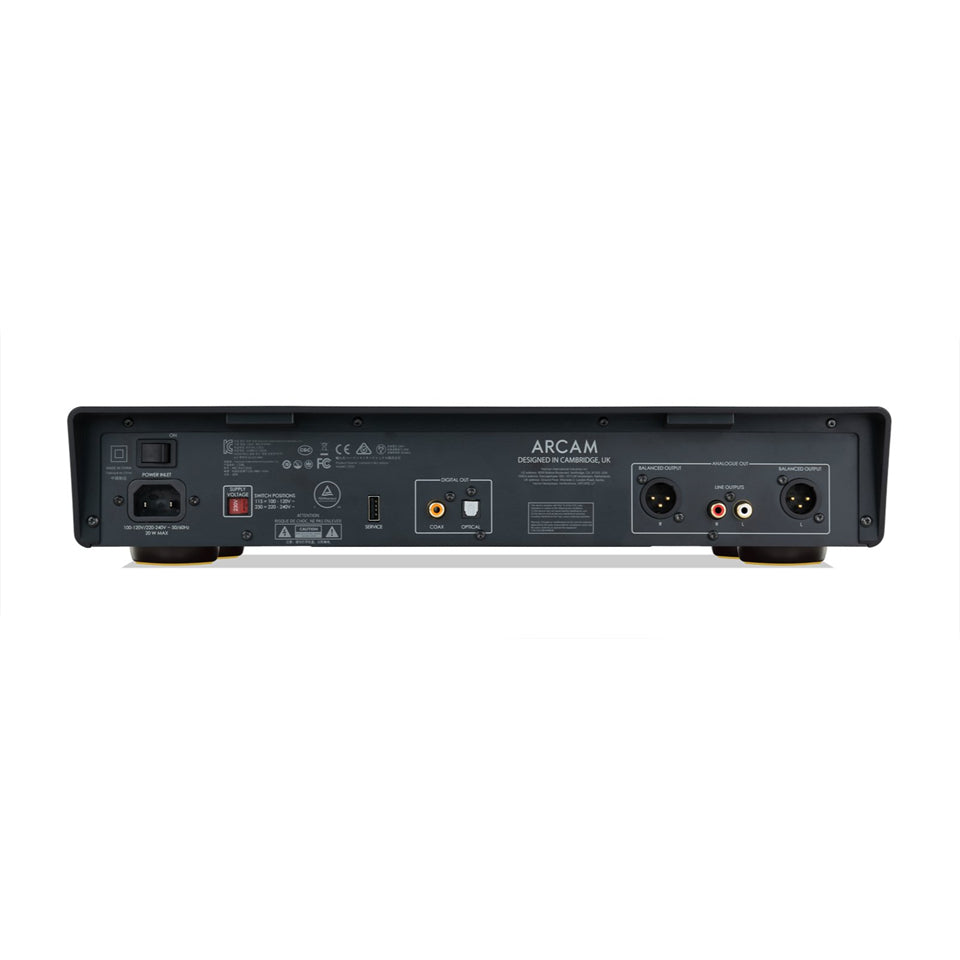

• Digital Outputs: 2 (1 Optical, 1 Coaxial)
  Analogue Outputs: 2 (1 RCA Pair, 1 XLR Pair)
  Maximum Analogue Output (0dBFS, RCA/XLR): 2.2/4.4VRMS
  Signal/Noise ratio (A-wtd, ref. 16-bit/24-bit, 0dBFS): 93dB/115dB
  Frequency Response (default filter): 20 Hz – 20 kHz ±0.1 dB

• General
• Mains Voltage: 100–120V or 220–240V, 50/60 Hz
  Maximum power consumption: 20 W
  Standby power consumption: <0.5 W
  Maximum ambient operating temperature: 35°C/95°F
  Dimensions W x D (including speaker terminals) x H (including feet): 431 x 329 x 84 mm
  Weight (net): 6.5 kg
  Weight (gross): 9.5 kg
  Supplied accessories:
  Mains lead(s)
  Remote control with 2 x AAA batteries
  Quick Start Guide
  Important Safety Instructions
