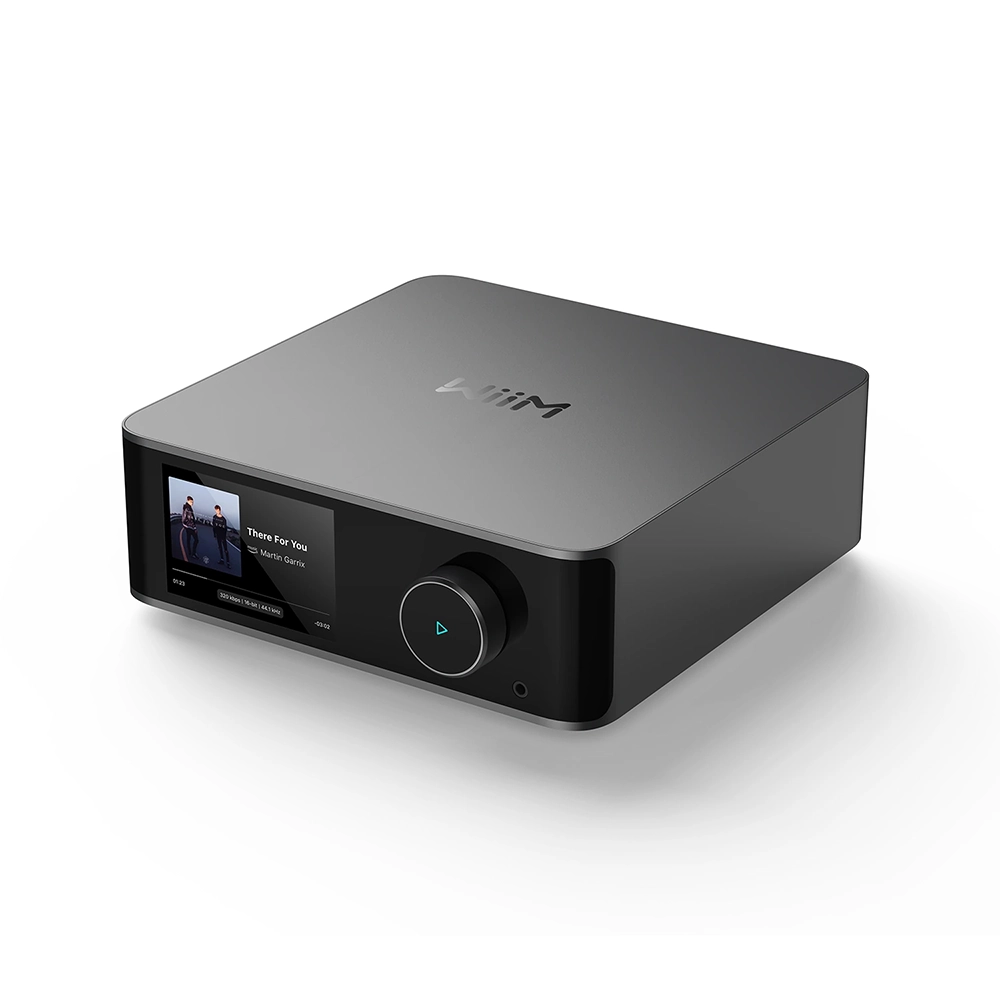

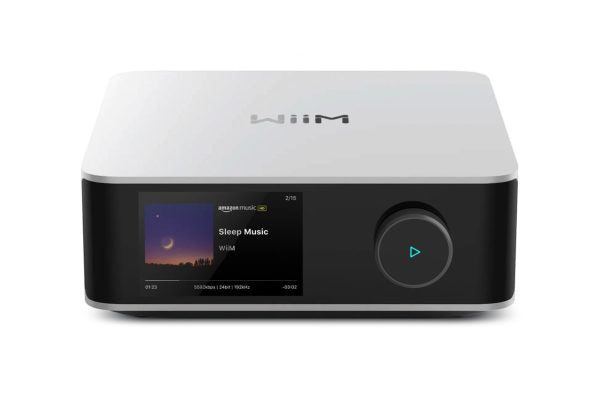

WiiM Amp Ultra Streaming Amplifier

• Combine an award-winning streamer with powerful amp and you get a supremely capable all-rounder – the WiiM Amp Ultra.Ultra amplifier and streamer – in one
  Bringing together WiiM’s ultimate amplifier and network music streamer within a single box, the Amp Ultra is a compact powerhouse. With Hi-Res compatible sound and ample power, you get crisp, room-filling audio, without the need for a separate amp. WiiM’s comprehensive streaming system brings together all your streaming and networking needs and is easy to control via the app and touchscreen display.
• Smooth, powerful sound
  With 100 watts per channel, the WiiM Amp Ultra has ample power for larger rooms and less efficient speakers that need plenty of power to shine. Partner with 4 ohm speakers and the power increases to a mighty 200 watts per channel.
• Premium components for purist sound
  Using the sophisticated TI 3255 amplifier circuit, fitted with premium TI OPA1612 op-amps and high quality auxiliary components, the Amp Ultra delivers the highest levels of detail and ultra-low distortion. Advanced thermal design uses innovative heat dissipation for improved cooling, making the 100 watts power output fully accessible.
• Tailored sound with built-in RoomFit
  Every room sounds different, which is why WiiM has fitted the Amp Ultra with its room calibration system. RoomFit uses built-in acoustic measurement and correction to measure your room’s acoustics, speaker type and distance, and then optimises the sound to suit. Download the WiiM Home app and you can personalise the sound via the 24 preset EQ profiles and 10-band EQ.
• Top quality DAC for Hi-Res sound
  Featuring a premium quality, ESS Sabre ES9039QM2 DAC, the WiiM Amp Ultra handles Hi-Res music files with ease. Compatible with PCM files up to 32 bit/384kHz and DSD512, it makes the Amp Ultra the ideal device for streaming your top quality Hi-Res music.
• Supports your favourite music streamer
  The WiiM Amp Ultra supports a wide range of popular music streaming services, including Spotify, Amazon Music, Tidal, Napster, Deezer, Qobuz and more. The Internet radio app, TuneIn, is also supported. Alternatively, connect to your local DLNA network attached drive and wirelessly stream your own, stored music files.
• Chromecast audio, Spotify, Qobuz and Tidal Connect
  If you use Spotify, Qobuz and Tidal apps, the WiiM Amp Ultra is compatible with their ‘Connect’ feature (premium account may be required). This lets you use the Spotify, Qobuz or Tidal app to take direct control of the Amp Ultra, giving you a seamless experience as you switch between devices. Chromecast Audio is the Android music streamer that accesses the Google Play store for a vast range of audio app solutions.
• Alexa Cast, Roon Ready and more for Multiroom potential
  The WiiM Amp Ultra fits into a wide range of multiroom ecosystems. Compatible with Alexa Cast, Alexa Multiroom and Roon Ready, it suits many applications. You can also group with Nest or Echo speakers. Finally, for a simple connection with your smartphone and headphones, there’s 2-way Bluetooth.
• Complete digital and analogue hub
  More than just a comprehensive streamer, the Amp Ultra lets you connect with the rest of your music devices too. Connect your TV via HDMI and a CD/DVD/Blu-ray player via the optical input and take advantage of the Amp Ultra’s top quality digital conversion. There’s also an analogue line level input for a tuner or CD player.
• Touchscreen control
  Sitting alongside the volume control is a 3.5 inch, full-colour touchscreen display. This not only lets you set-up and adjust the player’s settings but also displays album art and track listings, letting you see what’s playing, without having to check your smartphone.

• For top quality sound, from all your music sources, just add speakers to the WiiM Amp Ultra.






• Network Connectivity
  Wi-Fi & Ethernet
• Amplifier Class
  D
• Power Output (4Ω)
  200 W
• Power Output (8Ω)
  100 W
• Frequency Response
  20Hz – 20kHz ± 0.5dB
• Channel Separation
  2
• Damping Factor
  94
• Signal To Noise Ratio
  ≥120 dB
• THD
  0.08 %
• THD +N
  ≤0.005 %
• Output Impedance2–8 Ω
• RCA Input(s)
  1
• Bluetooth Input
  Y
• Bluetooth Version
  5.3
• HDMI Input(s)
  ARC Input
• Optical Input(s)
  1 (24-bit, 192kHz)
• DAC Chip
  ES9039Q2M
• Digital Output(s)
  USB
• Subwoofer Output(s)
  RCA Mono
• Enclosure Material
  Aluminium
• Dimensions (W x H x D)
  200 x 211 x 76.2 mm



• Weight2.45 kg
