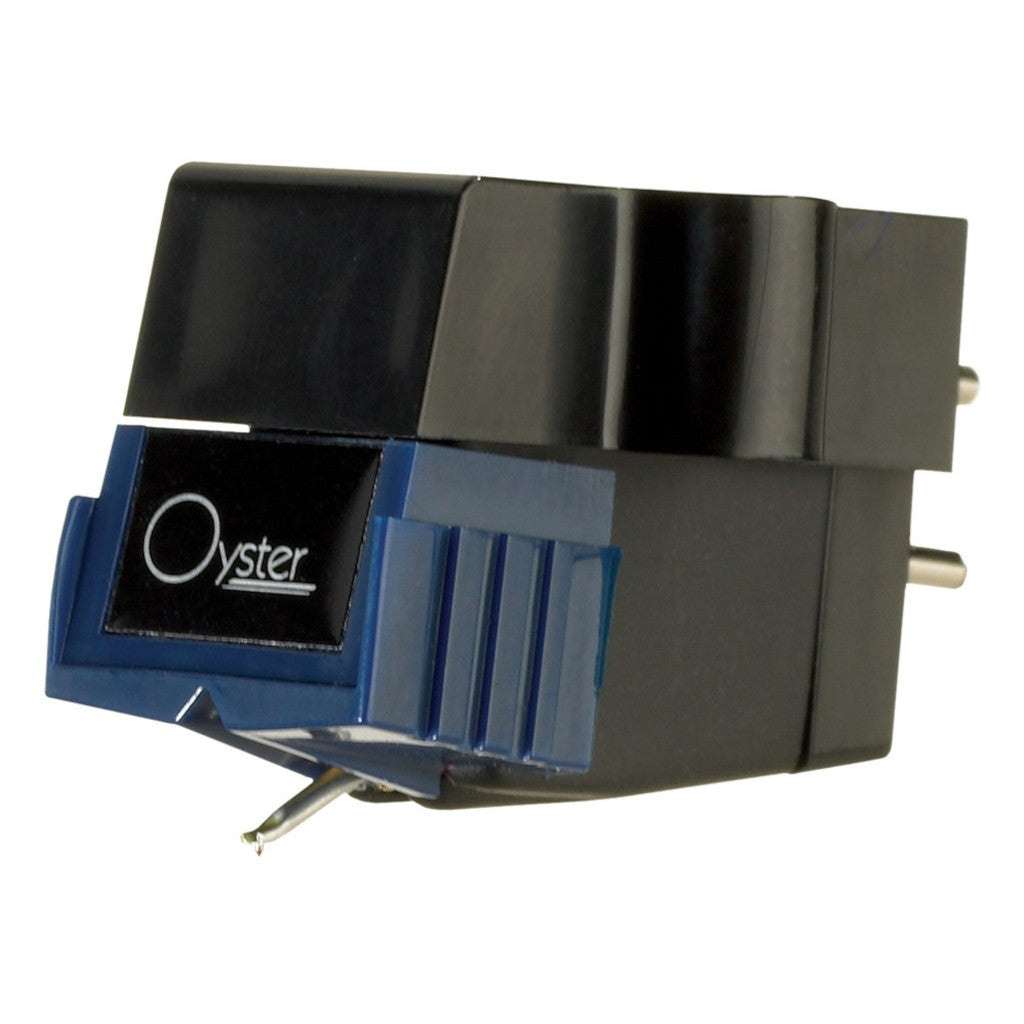

Sumiko Oyster MM Cartridge

• The Oyster phono cartridge is generally smooth in character, yet surprisingly musical. It is a high-value introduction to the vinyl hobby, and the price makes it great for anyone looking to get a taste for the difference a cartridge upgrade can make.
• Inviting sound with smooth qualities
• Spherical diamond stylus
• Overhead mounting cartridge for installing into a headshell
• Moving magnet cartridge with removable stylus
• The bonded spherical stylus, alloy cantilever and rugged generator assembly of the Oyster makes it perfect for those seeking a cost-effective moving magnet cartridge that can be used in a wide range of applications.
• Designed to elevate the performance of nearly any entry-level turntable it adorns, the Oyster is the most affordable Sumiko cartridge, but still embodies the company's core philosophy of truly engaging hi-fi sound regardless of the cost. Expect to travel deeper into your music with Oyster.



• OUTPUT VOLTAGE
  5 mV
• CHANNEL BALANCE (@ 1000HZ)
  1 dB
• CHANNEL SEPARATION (@ 1000HZ)
  25 dB
• CHANNEL SEPARATION (@ 15000HZ)
  15 dB
• FREQUENCY RANGE (@ -3DB)
  5000 Hz
• FREQUENCY RESPONSE
  30 - 20,000 dB
• TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE)
  60 μm
• COMPLIANCE, DYNAMIC, LATERAL
  12 μm
• STYLUS TYPE
  0.7mil Spherical
• TRACKING FORCE RANGE
  1.5 - 2.5 g
• RECOMMENDED TRACKING FORCE
  2.3 g
• TRACKING ANGLE
  25 °
• INTERNAL IMPEDANCE
  1130 Ω
• INTERNAL INDUCTANCE
  490 mH
• MAGNET TYPE
  Alnico
• CANTILEVER MATERIAL
  Aluminium Tube
• COIL WIRE MATERIAL
  Pure Copper
• RECOMMENDED LOAD IMPEDANCE
  47000 Ω
• RECOMMENDED LOAD CAPACITANCE
  100 - 200 pF
• CARTRIDGE WEIGHT
  5.3 g




Click here to download documentation from the manufacturer
