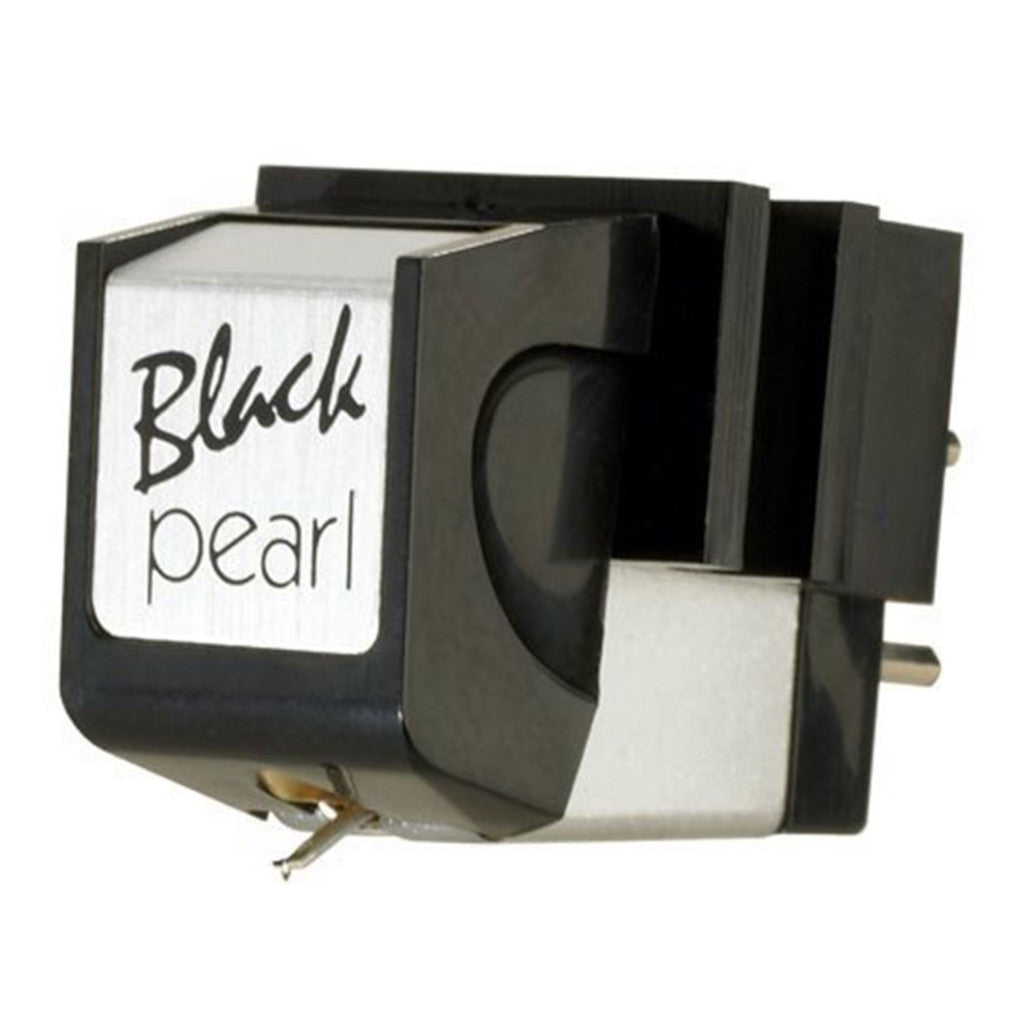

Sumiko Black Pearl MM Cartridge

• Borrowing the smooth character of its sibling Oyster, Black Pearl implements an improved housing that allows for wider frequency response. This makes way for more nuance and greater stereo imaging in a more cohesive soundstage.
• Great value sound with a wide frequency response
• Spherical diamond stylus
• Overhead mounting cartridge for installing into a headshell
• Moving magnet cartridge with removable stylus
• The Black Pearl utilises the same proven, reliable cartridge body as the internationally renowned Pearl, mounting the same spherical stylus as the Oyster onto an improved cantilever. This unique combination gives a rich musical output, benefiting from greater channel separation and a wide frequency response that pushes the listening experience to the next level.
• Offering a notable step-up over the budget Oyster, but still achieving an affordable price-point, the Black Pearl embodies the company's core philosophy of high fidelity sound at any cost.


• OUTPUT VOLTAGE
  4 mV
• CHANNEL BALANCE (@ 1000HZ)
  0.5 dB
• CHANNEL SEPARATION (@ 1000HZ)
  28 dB
• CHANNEL SEPARATION (@ 15000HZ)
  17 dB
• FREQUENCY RANGE (@ -3DB)
  6000 Hz
• FREQUENCY RESPONSE
  18 - 27000 dB
• TRACKING ABILITY
  (@ 315HZ AT RECOMMENDED TRACKING FORCE)
  60 μm
• COMPLIANCE, DYNAMIC, LATERAL
  12 μm
• STYLUS TYPE
  0.7mil Spherical
• TRACKING FORCE RANGE
  1.5 - 2.0 g
• RECOMMENDED TRACKING FORCE
  2.0 g
• TRACKING ANGLE
  25 °
• INTERNAL IMPEDANCE
  1130 Ω
• INTERNAL INDUCTANCE
  520 mH
• MAGNET TYPE
  Alnico
• CANTILEVER MATERIAL
  Aluminium Tube
• COIL WIRE MATERIAL
  Pure Copper
• RECOMMENDED LOAD IMPEDANCE
  47000 Ω
• RECOMMENDED LOAD CAPACITANCE
  100 - 200 pF
• CARTRIDGE WEIGHT
  6.0 g



Click here to download documentation from the manufacturer
