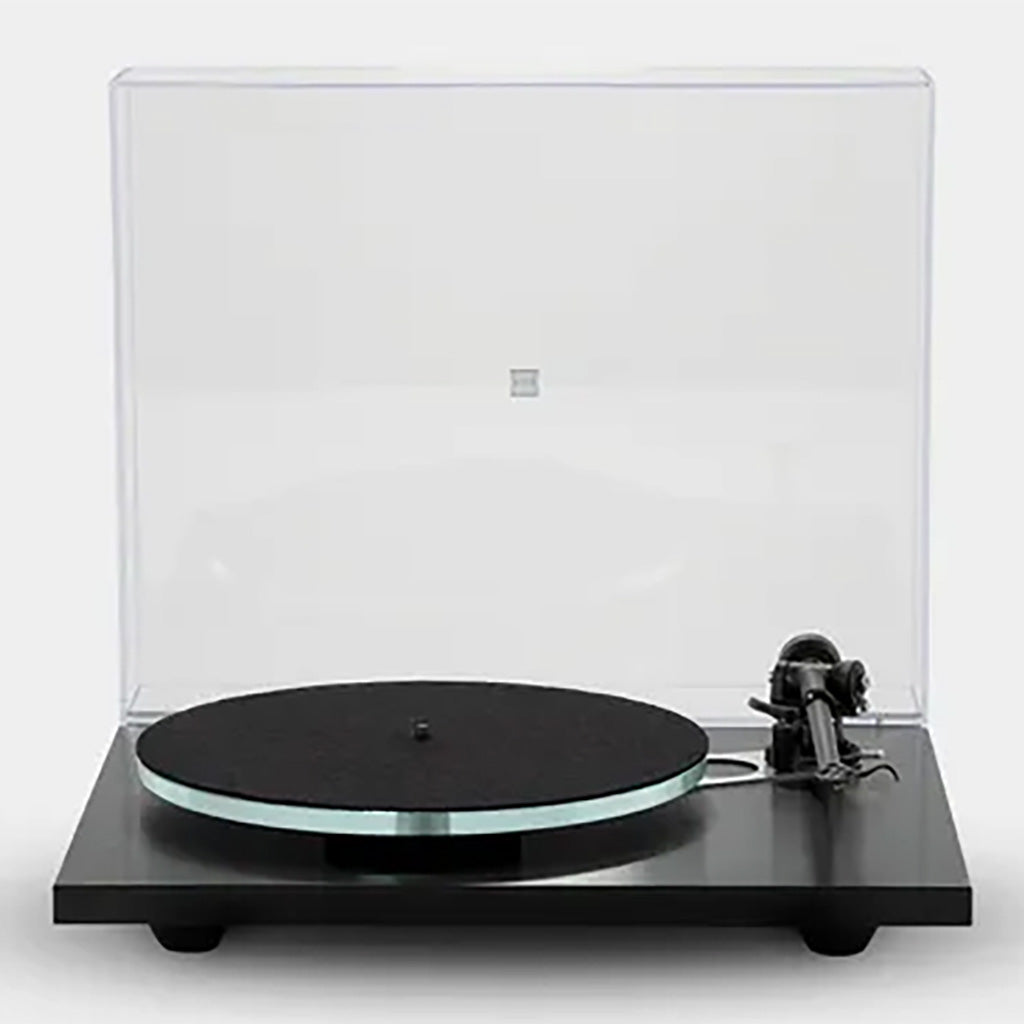

Rega Planar 3 ECO Turntable

• NEW for 2024 - Light oak effect Planar 3 - available with Nd3 or Nd5 factory fitted.
• Replacing the multi award winning What Hi-Fi? Product of the Year (RP3) was never going to be an easy task. It took our team of designers headed up by Rega’s Roy Gandy, two years to develop the all new ‘Planar 3’ following the biggest re-design of the iconic ‘Three’ model ever seen. The ‘Planar 3’ is a completely new turntable carrying over just two components from the previous RP model.
• The iconic Planar 3
• Rega has pioneered the use of lightweight rigid plinths. Clever use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic original Planar range.
• The new Planar 3 takes this design philosophy to the next level. A lightweight acrylic laminated plinth strengthened using a new improved double brace system mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) which forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonance, which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy, such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.
• What Hi-Fi? Product of the year 2016, 2017, 2018, 2019, 2020, 2021
• RB330 precision tonearm
• Double brace technology
• 24 V low noise, low vibration motor
• 12 mm float glass opti-white polished platter
• Supplied with clear dust cover as standard.
• Compatible with Rega Neo turntable power supply (sold separately)
• Three high gloss plinth options and light oak effect (New for 2024)
• Advanced EBLT drive belt fitted as standard from March 2021
• Lifetime warranty against manufacture defects

• RB330
  The RB330 tonearm was designed using the latest 3D CAD & CAM technology, and is the culmination of more than 35 years of tonearm design experience. Featuring a brand new bearing housing, and our latest tonearm tube designed using intelligent redistribution of mass ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the new high precision bearing assemblies guarantees to gather more information from your vinyl than ever before.

• PLINTH
  High gloss acrylic, laminated plinth, stiffer and vastly improved appearance, ergonomically positioned power switch. Available in three stunning high gloss finishes, black, white and red and new for 2024 Light oak effect.

• DOUBLE BRACE TECHNOLOGY
  Improved thicker 3 mm phenolic bottom brace and new metalised skin phenolic top brace.

• BEARING HOUSING
  Re-designed brass main hub central bearing, improved fit and construction reducing stress on the bearing itself.

• ISOLATION
  New improved foot to increase stability and reduce vibration transfer.

• 24 V MOTOR
  Improved new motor control PCB with integration for the addition of Neo PSU for electronic speed change and improved advanced anti-vibration circuit (sold separately). New motor cover tray with integrated cooling.

• DUST COVER
  Supplied as standard / optional lid - plinth protectors - supplied to prevent marks on the plinth and keep it looking its best.

• SIMPLE SET-UP
  Easy to use multi-lingual quick start guide for easy set up

• SUB PLATTER
  Re-designed sub platter, improved accuracy and improved stiffness.

• PLATTER
  New float glass ‘Optiwhite’ polished edge 12 mm – Improved accuracy in manufacture and stunning looks.

• As a manufacturer, Rega is always looking at ways to reduce waste and avoid parts going to landfill. We are proud of the fact that we have employed a team of people (for many years) dedicated purely to reworking or recycling damaged parts. Unfortunately, there are always some parts that may have cosmetic issues deemed not acceptable ‘in our industry’ for use in an ‘A’ grade product. In some cases, it is not always economical to rework them, and such items are sadly destined for landfill. This is always the very last resort but as a responsible company we feel that we can no longer accept this as a viable option.

  Attitudes to waste are changing, for many years, imperfect fruit and vegetables were discarded and deemed not fit for sale simply due to appearance. However, the popularity of such goods rebranded in the UK as “wonky fruit” has seen a vast increase in sales over recent years as consumers become more educated and aware of how important avoiding unnecessary waste is. Rega now works with 650 suppliers, (85% of which are based in the UK) and all have a responsibility to supply us quality parts. However, either due to poor packing, mishandling or transport some items may become damaged. These parts would often be classed as unrecoverable by our rework team.

  This is where Rega Green Grade comes in. Instead of not using parts with cosmetic faults we have decided to use such parts to build Green Grade Rega products. These products will function and perform perfectly and come with our unrivalled Limited Lifetime Warranty against manufacturing defects. In an ideal world, all consumers would accept Green Grade and we would stop wasting valuable resources and reduce our carbon footprint. But for now, we hope these small steps will change people’s attitudes and deliver us all a better and less wasteful future.

  For Rega this is a non profit initiative designed to use parts and save them from being disposed off.

  The latest GREEN GRADE initiative MAY 2025 will be the ‘Planar 3 ECO SPECIAL ’ here is how it will work.

  We have a selection of Planar 3 aluminium skin edition metal plinths that have small imperfections.
  This product is compatible with the Neo PSU, (Not supplied)
  Other green Grade components will be used as and when available such as platters, dustcovers and tonearms with cosmetic faults.
  The Plinths for the ECO DECKS will NOT be silk screened with a P3 logo so they can be easily identified as Green Grade
  Each ECO deck will be fitted with a Rega ECO lid badge.
  Each ECO Deck outer carton will have a sticker with the Rega Green Grade logo for easy identification.
  Every deck will be thoroughly tested and will have to pass all of the stringent tests that an ‘A’ grade Planar would need to pass.
  Performance is not affected in any way.
  Lifetime Warranty is included against functional defects, but this will NOT cover cosmetics.
  Recommended cartridge, Rega Nd3 (not included).Tonearm: Hand assembled RB330 tonearm

REGULAR PLANAR 3 DETAILS BELOW

• Motor: 24 V low noise motor
• Platter: 12mm Glass Polished Edge
• Connectivity: RCA/Phono
• Power (Additional) Mini DIN for connection to Neo PSU (optional upgrade)
• Dimensions: (lid closed) (W x H x D) 447 x 117 x 360 mm
• Weight: 6 kg
