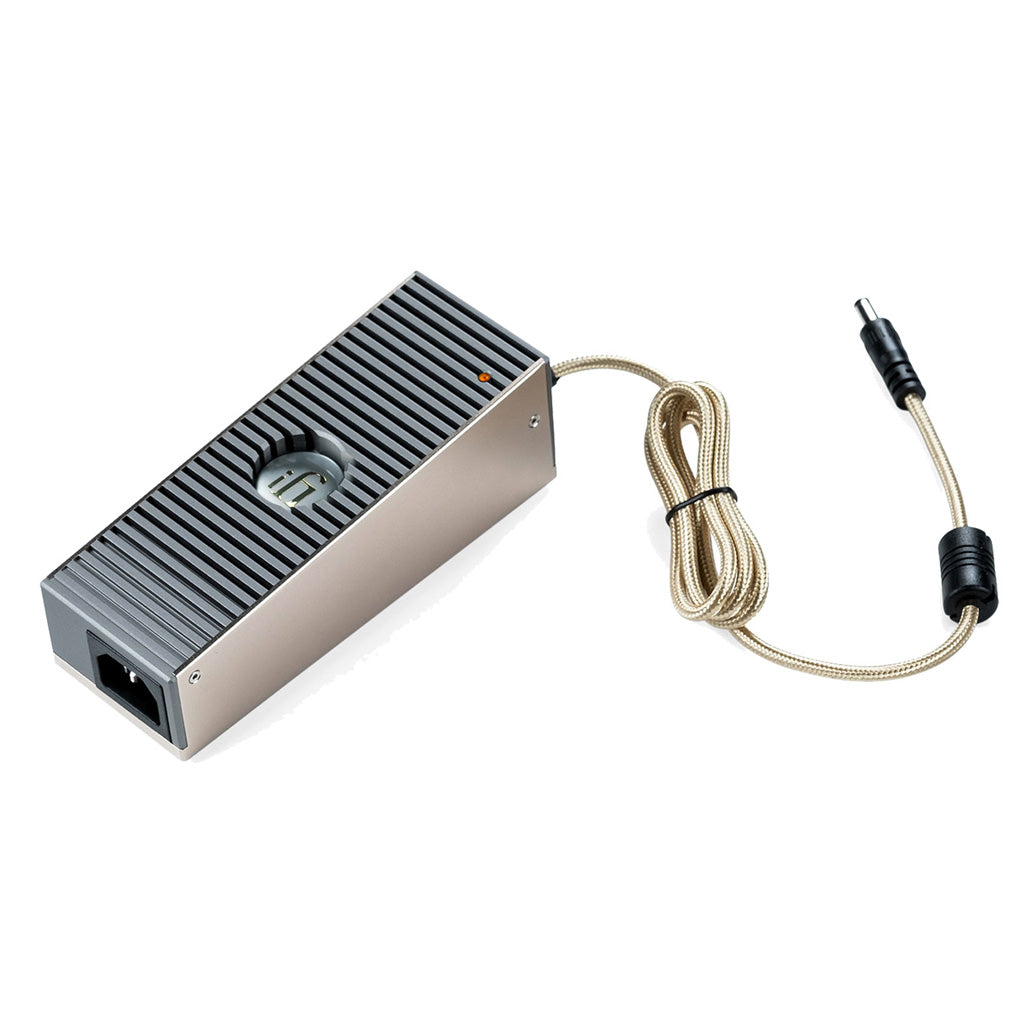

iFi SilentPower iPower Elite Upgrade Power Supply

• The generic SMPS power supply (PS) is very noisy. Many upgraded audiophile linear PS are better, but still have huge noise at the rectification frequencies and at multiples 50Hz, 100Hz, 150Hz (or 60, 120, 180 for 60Hz countries) etc. The iPower Elite was designed to deliver the smooth and silent power. It gives your streamer/DAC/amplifier all the silent, clean power of a battery with none of the hassle.
• Active Noise Cancellation II
  The iPower elite removes electrical noise (including EMI/RFI) at source using iFi's Active Noise Cancellation II circuit. This process enables bit-perfect transfer of audio data to the DAC.
• Multiversatile DC Power
  It works with virtually any DC powered device and comes in 5, 12, 15 and 24 volts. Clean, better than audiophile-grade power.
• Enlarged Capacitance
  The iPower Elite device has an enlarged input/output capacitance, making it able to store power.
• Smooth and Silent Power
  The iPower Elite was designed to deliver the smooth and silent power. It gives your streamer/DAC/amplifier all the silent, clean power of a battery with none of the hassle.

• Elite design & specs.
• The iPower Elite has:

  <1uV noise floor.
  Special circuit design for whisper-quiet noise floor using cherry-picked components.
  Latest Active Noise Cancellation 2.
  Full unibody Aluminium chassis with heatsink built-in.
• Talk about tech
  Beneath the extruded aircraft-grade aluminium chassis is serious hardcore technology:

  60W high performance adaptive multi-mode controller, optimized for high efficiency, low standby power, and audio noise free design
  Frequency shuffling technique to achieve excellent EMI performance
  Low-leakage transformer
  RF designed PCB




• Noise reduction
  > 40dB (> 100x)

• Surge Protection
  max. 30,000A @ 1,000V/10uS

• Operating Voltage:
  90V - 265V

• Size/Weight: (USA)
  ø 40mm x 105mm (L)
  108 (g) / 0.24 (lbs).

• Size/Weight: (EU)
  ø 40mm x 115mm (L)
  126 (g) / 0.28 (lbs)

• Warranty period
  12 months


Click here to download documentation from the manufacturer
