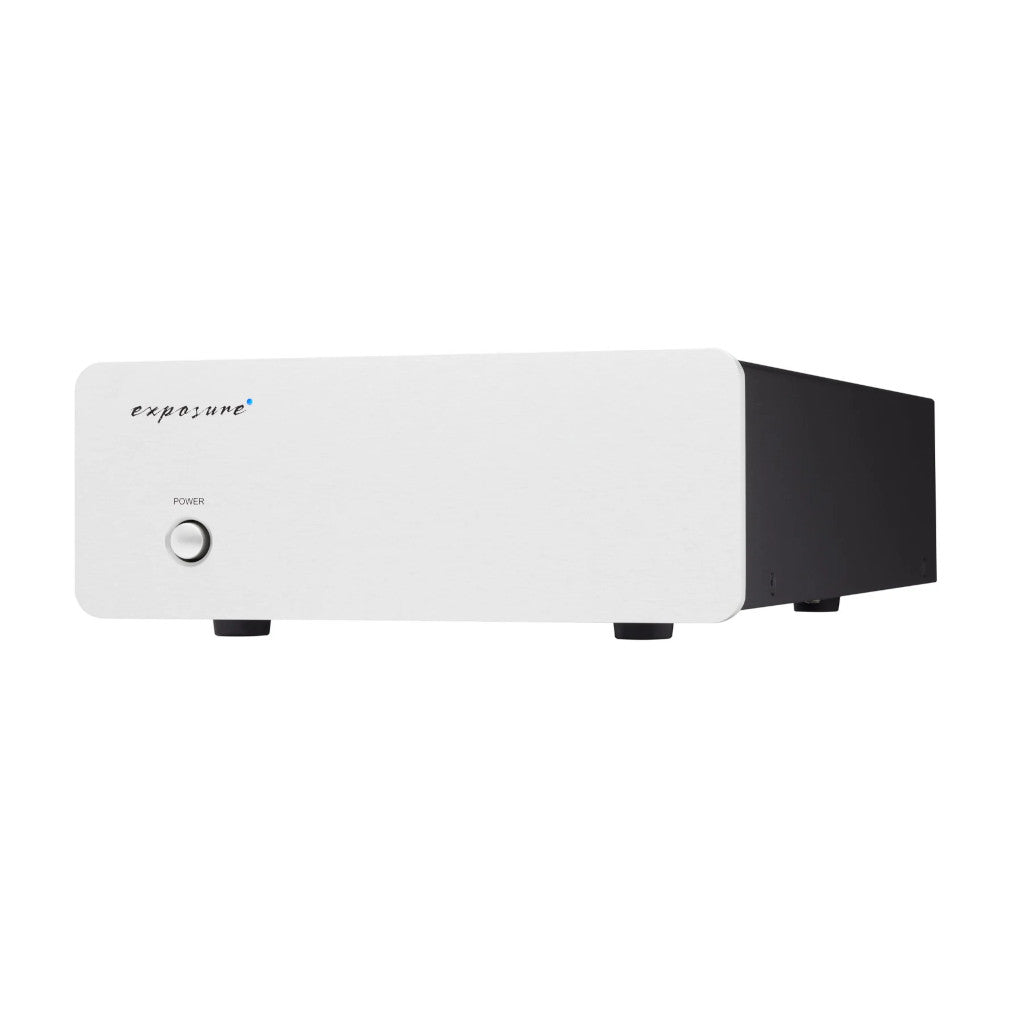

Exposure XM3 Phono Stage Amplifier

• Exposure's Hi-Fi components are crafted to exacting standards, offering exceptional value. 4Their design philosophy prioritizes accurate music reproduction across all genres while maintaining a discreet aesthetic. Known for their user-friendliness and ease of maintenance, Exposure's products deliver precise sound quality. These components provide listeners with an outstanding audio experience, characterized by delicate upper ranges, open mid-range, and deep, agile bass, making them an excellent investment for music enthusiasts.

• Exception clarity and precision
  The Exposure XM3 phono amplifier is part of the XM series of compact half width components. It includes support for both moving magnet and moving coil cartridges, with adjustable loading and gain. Exposure are one of the few amplifier manufacturers that really understand the delicacy of a phono input.

• Features:
• Large 200W custom made toroidal transformer for power supply
• Multiple power supply capacitors in parallel for low ESR
• All discrete transistor audio stages

• High quality resistors & capacitors used in the signal path

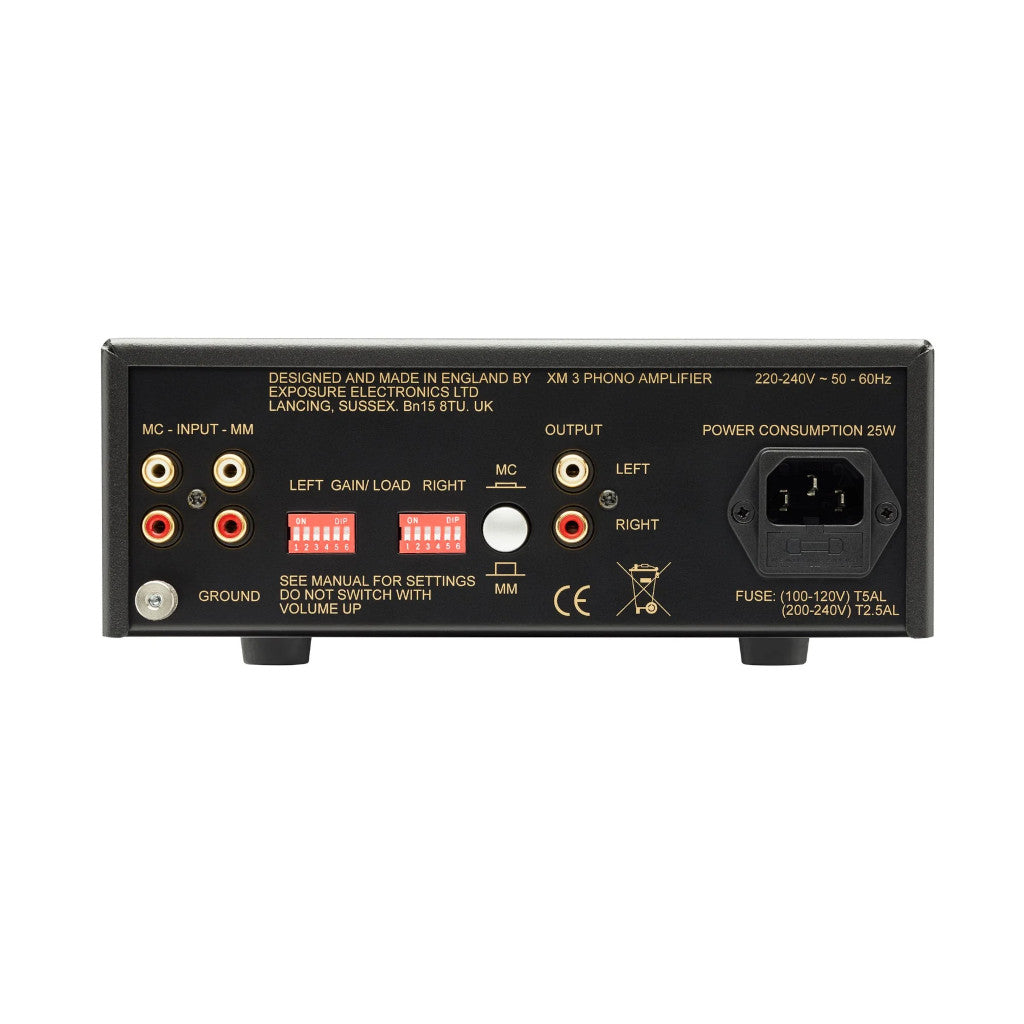

• Separate MM & MC inputs selectable on the back panel
• Adjustable loading & gain switches on the back panel
• High quality all aluminium case work and extruded front pane

• Three year guarantee

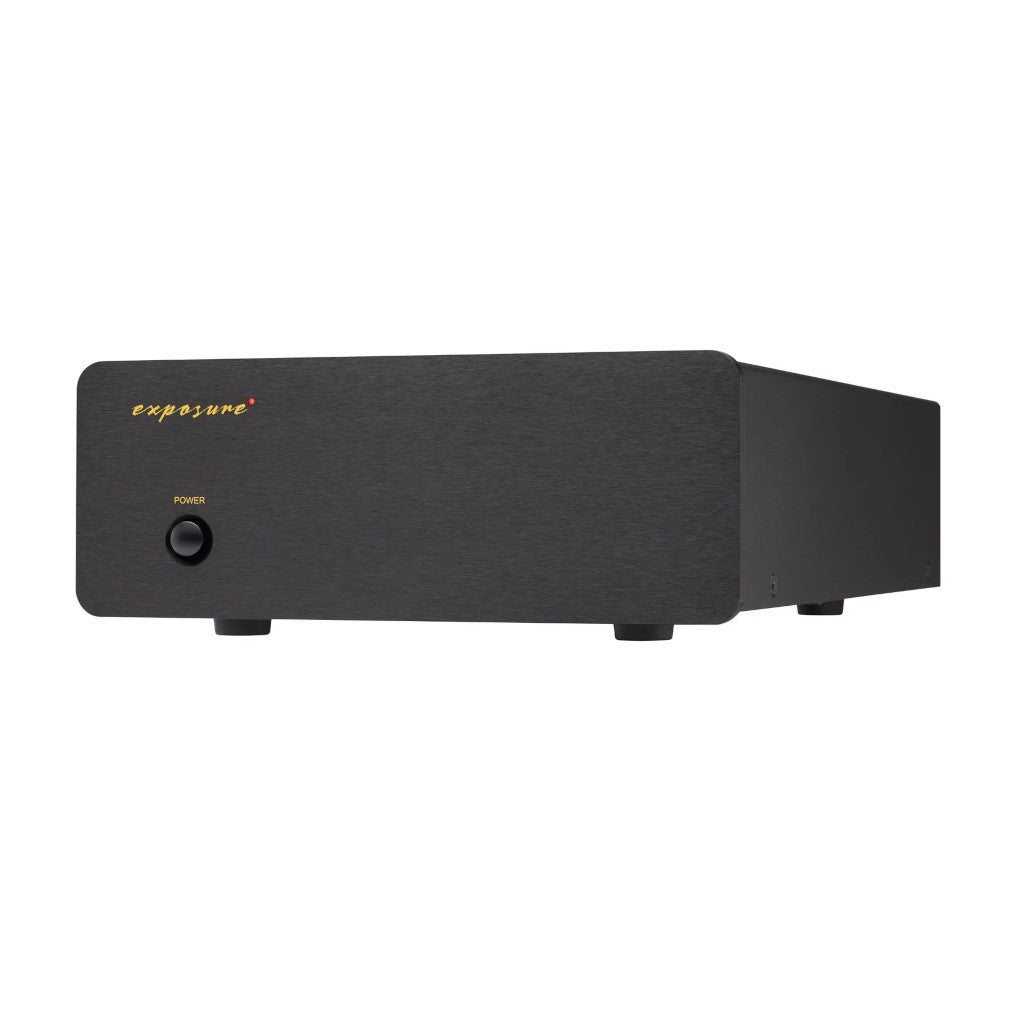

• Available in black or titanium



• Specifications:

• Output:

• Frequency Response:
  30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

• Total Harmonic @ 1kHz, ref 350mV out <0.025%

• MC Input:

• Maximum Output Voltage:
  7.8V RMS 1kHz

• Output Impedance:
  50 Ohms

• Moving Magnet Input Sensitivity:
  3.5mV input for 350mV output, 40dB gain setting

• Signal to Noise Ratio:
  ref 1kHz & 350mV out :
  Gain Switch 4 ON : >70dB
  Gain Switch 4 OFF : >78dB

• Moving Coil Input Sensitivity:
  350uV input for 350mV output, 60dB gain setting

• Signal to Noise Ratio:
  ref 1kHz & 350mV out:     >67db A weighted. ALL gain switches (4-6)

• General: Mains Supply:
  110/120V or 220/240V, 50/60Hz (factory set)

• Fuse:
  T5AL for 110/120V units
  T2.5AL for 220/240V units

• Power Consumption:  <25W

• Dimensions (HxWxD):89mm x 218mm x 348mm

• Net Weight:
  4kg

• Gross Weight:
  5kg
