Naim Audio NVC TT Phono Pre-Amplifier

The NVC TT features the finest audiophile components and undergoes highly precise measurements to produce uncompromising results. The NPX TT power supply is designed to provide even cleaner power to enhance the sound quality of the NVC TT.

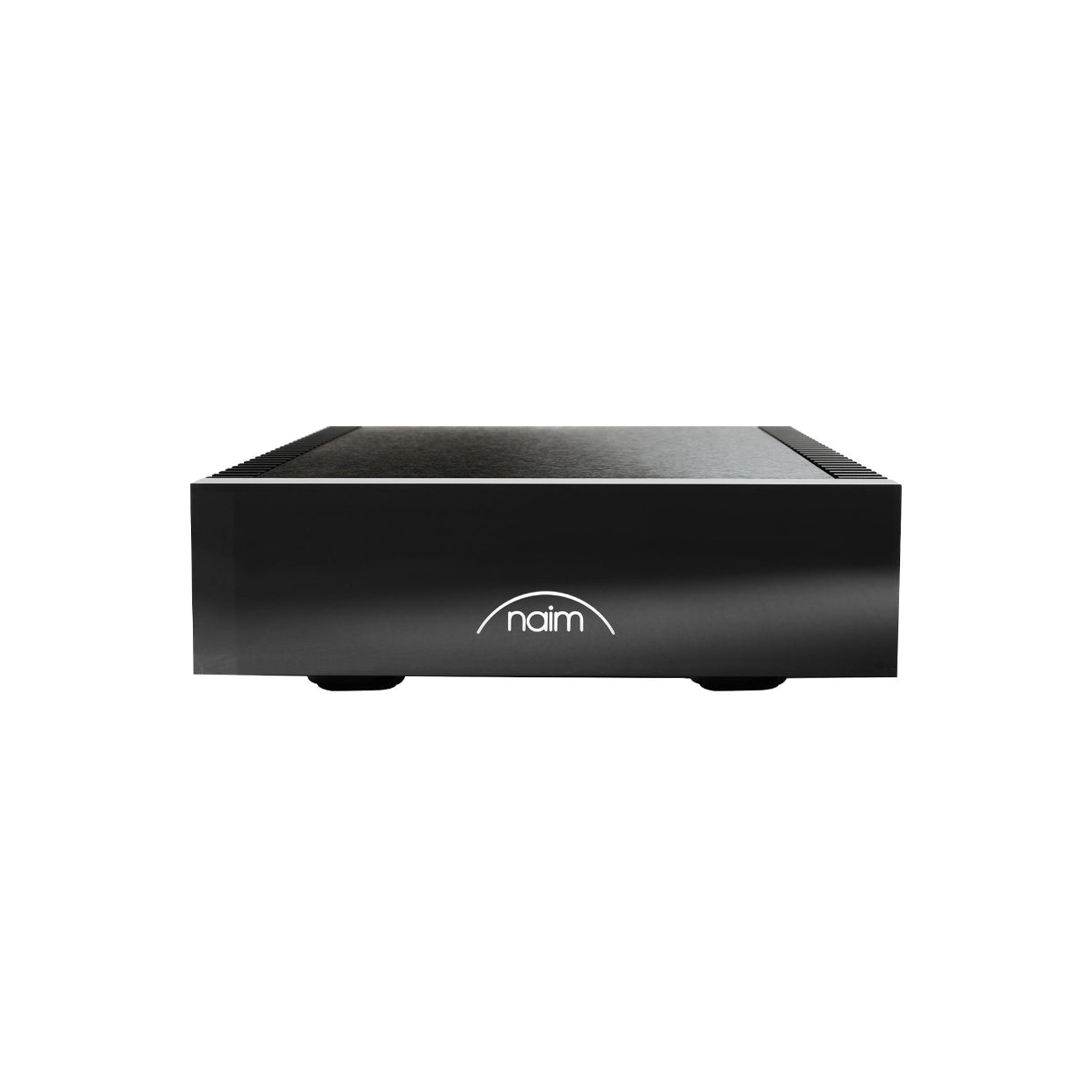

The sleek design of the NVC TT combines premium materials and adjustable logo brightness, resulting in a contemporary yet timeless look. The founder of Naim, Julian Vereker, was a pioneer in using aluminium to wrap electronic components in order to protect delicate audio components from magnetic fields, unstable temperatures, and unwanted vibrations.

The NVC TT can be easily integrated into any complete sound system and is specifically designed to work with preamplifiers NSC 222 and NAC 332 from the New Classic range. With the NPX TT power supply, the NVC TT delivers an exceptional vinyl listening experience.

- Audio Outputs: Max output signal: 8 Vrms
- Headroom: MM: 22dB ref 5mV input, MC (low & high gain): 23dB ref 0.5mV input low gain setting, 17dB ref 0.5mV high gain setting
- Audio Inputs: MM: (Partial) – 2dB at 20Hz and -3dB at 14Hz
- Power Amp In: +/-18V DC @300mA
- Audio Outputs
- Powered Accessory Sockets: Stereo RCA
- Crosstalk: MM: >75dB
- THD + N: MM: <0.005% ref 50mV input, MC (low & high gain): <0.005% ref 1.5mV inpu
- Signal-to-Noise Ratio: MM: 83dB réf. 5 mV A-wtd, MC (low & high gain): 84dB ref 0.5mV A-wtd (both gain settings)
- Gain: MM: 42dB, MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
- Phono Specific
- RIAA Accuracy MM: +/-0.1dB

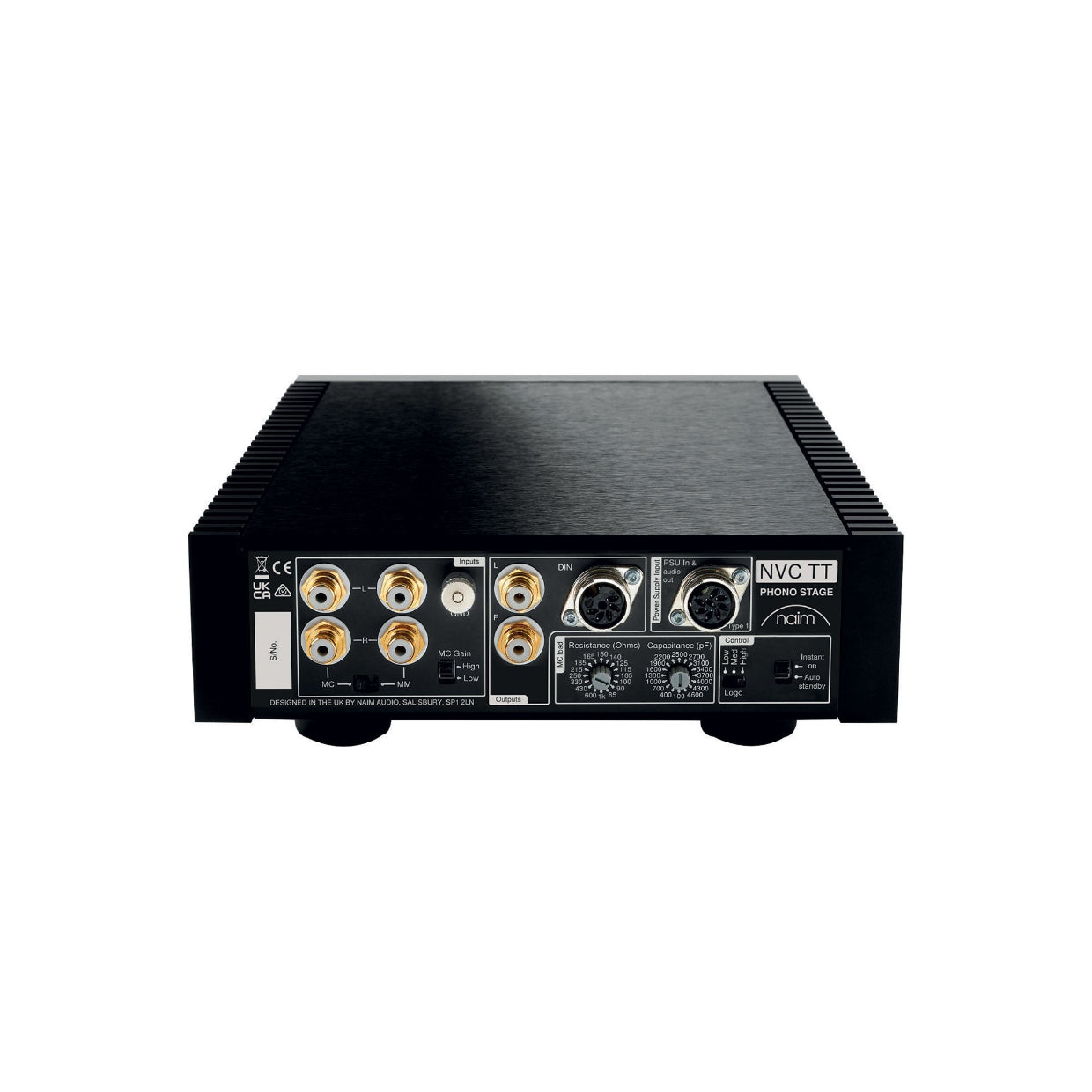

- Amplifier Output: 1 x Stereo RCA  1 x 5 pin DIN, 1 x 8 pin DIN
- Power Output: MM: 47kΩ and 100pF, MC (low & high gain):
- 16 selectable resistive values: 1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω
- 16 selectable capacitive values: 100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF
- Weight: 7.5lbs (3.4kg)
- Dimensions (HxWxD): 23/4x 83/8x 121/2" (7x21.4x31.7cm)

Click here to download documentation from the manufacturer
