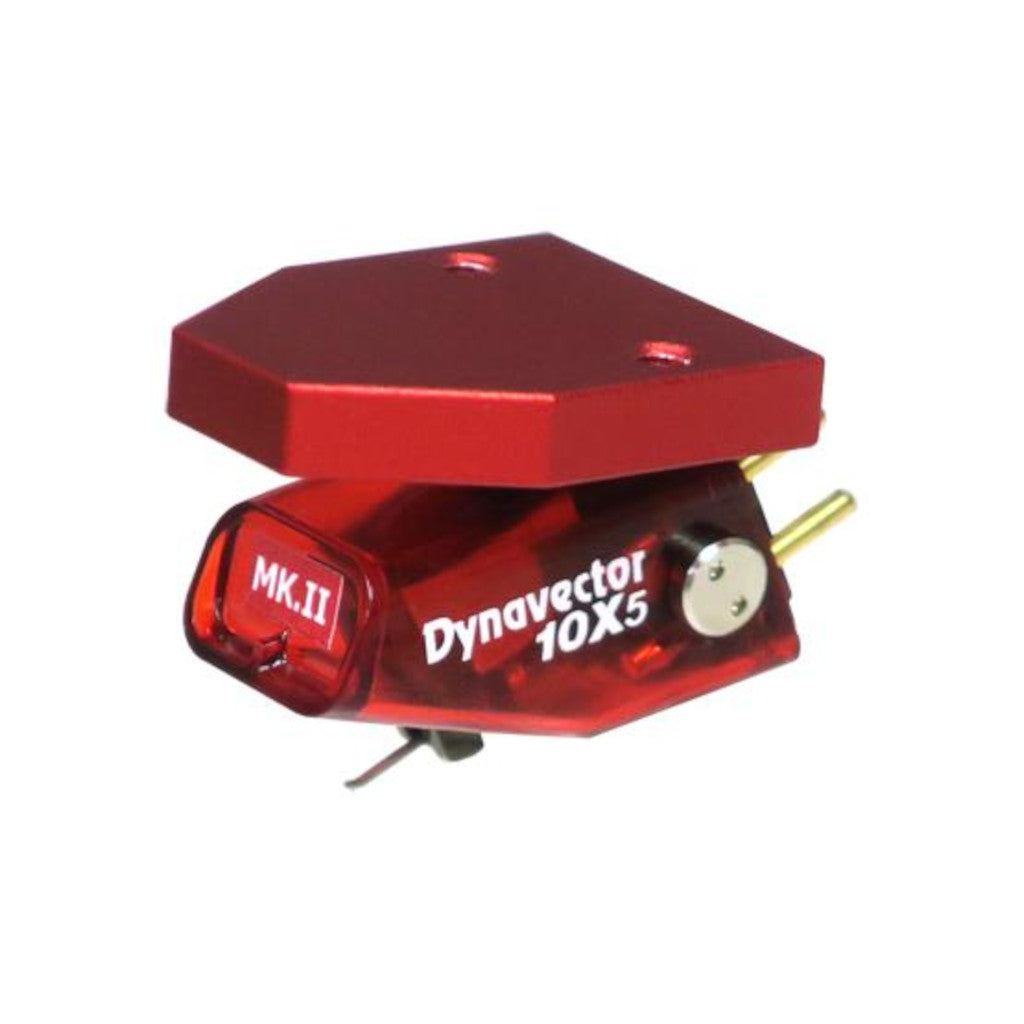

Dynavector 10x5 MII Low MC Cartridge

• The red body which is a feature of the 10X series has been manufactured for over 40 years.
• It is produced in the largest quantity as a representative model of Dynavector Cartridge and is most favored for audiophiles all over the world 10X5 which was released in 2003 features a powerful neodymium magnet and a newly designed Aluminium head block to provide a rigid platform for the cartridge motor and secure fixing to the tonearm.
• The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the DV-10X5mkII LOW a healthy 0.5 mV output. Higher output is suitable for most head amplifier or step-up transformer, DV-10X5mkII LOW is the best one for first MC cartridge.
• The Dynavector 10X5 MKII LOW also features an improved stylus assembly with the nude diamond “Shibata III” line contact stylus and improved hardened cantilever material. These improvements ensure secure tracking ability over even the most torturous of record grooves whilst achieving extended high frequency response and enhanced musical resolution.



• Type
  Low output moving coil cartridge with flux damper and softened magnetism
• Output Voltage
  0.5mV (at 1KHz, 5cm/sec.)
• Channel Separation
  25 dB (at 1KHz)
• Channel balance
  1.0 dB (at 1KHz)
• Frequency response
  20 – 20,000Hz (± 2dB)
• Compliance
  12 mm/N
• Tracking force
  1.8 – 2.2 g
• Impedance
  R = 32 ohms
• Recommended load impedance
  > 100 ohms
• Cantilever
  6mm length hardened aluminium pipe
• Stylus tip
  Nude Diamond “Shibata III” Line Contact
• Weight
  7.5 g




Click here to download documentation from the manufacturer
