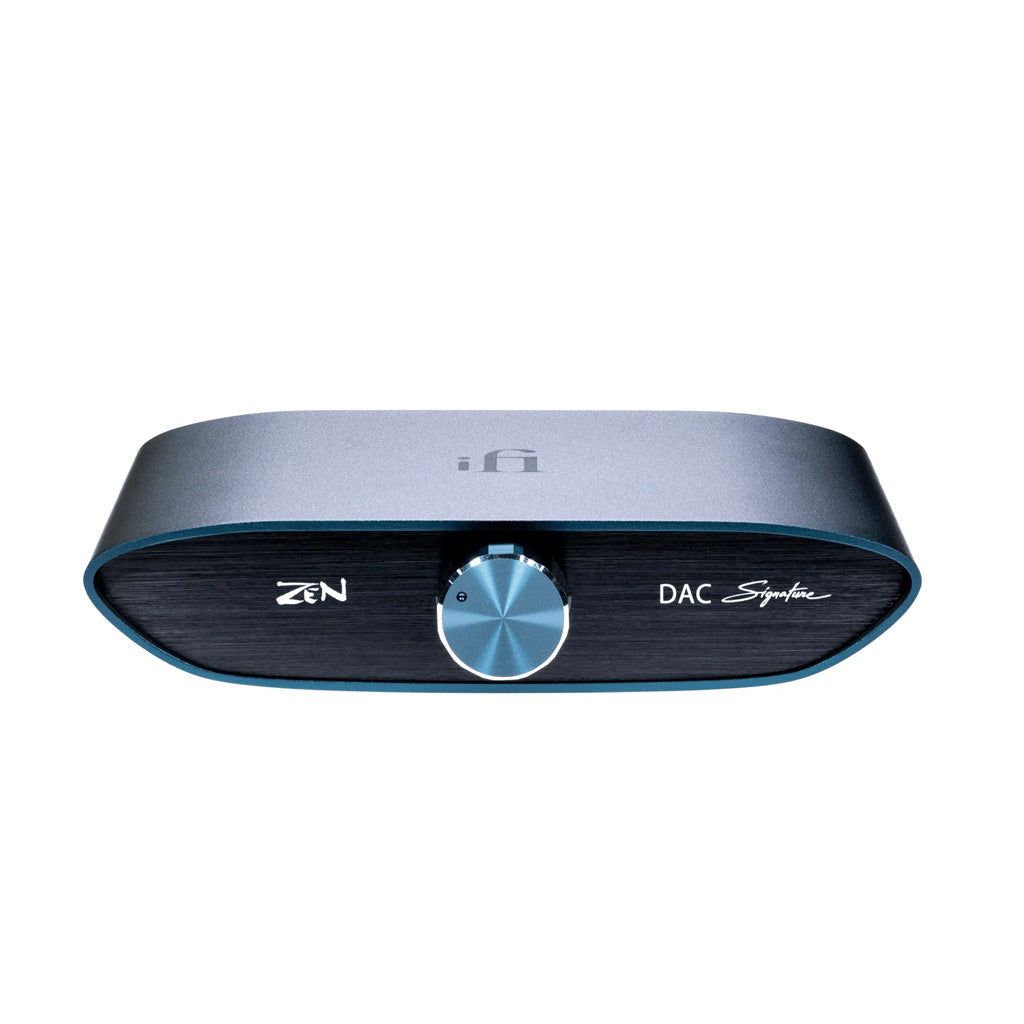

iFi Audio ZEN DAC Signature V2 DAC

• A ‘Bit’ special…
• The ZEN DAC Signature V2’s digital stage retains its True Native DAC architecture. It delivers Bit-Perfect up to 32-bit/384kHz and native DSD up to DSD256 as well as DXD. The iFi-programmed XMOS chip, which processes data received at the USB input, and jitter-eradicating, audiophile-grade oscillators, contribute to exemplary handling of digital audio signals as they are received, processed and converted to analogue form.Confident connections
• The ZEN DAC Signature V2 ensures jitter-free data transfer via its asynchronous USB Type B input, regulated by upgraded audio clock circuitry. It features RCA sockets for single-ended output and a 4.4mm Balanced output for compact, balanced connections. The balanced circuit design delivers optimal performance with amps or speakers equipped with 4.4mm Balanced or XLR inputs.
  Balanced. Blissfully quiet.
• The ZEN DAC Signature V2 incorporates boutique parts and circuitry inspired by the £3,000 iFi Pro range. It sports a fully-symmetrical, true differential balanced dual-mono signal stage with direct signal paths to ensure optimal signal purity.
• The new low jitter crystal clock means >20dB better noise reduction. The ZEN DAC Signature V2 will remain quiet wherever it’s used.
• Outstanding components including C0G capacitors from TDK, Panasonic OS-CON and ELNA Slimic II capacitors complete the design.
• 16 core means more…
  MQA an award-winning British technology that delivers the sound of the original master recording. Thanks to the processing power of the new 16 core XMOS chip, the ZEN DAC Signature V2 is now a full MQA decoder.

• The ZEN DAC Signature V2 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
• Fixed or variable. You decide.
• The outputs of the ZEN DAC Signature V2 can be switched between ‘variable’ and ‘fixed’.

• Variable – use this setting if you wish the ZEN DAC Signature V2 to control the volume of powered speakers or its volume as a preamp.

• Fixed – this option is for when you use it with downstream equipment with its own volume control. This will bypass the ZEN DAC Signature V2 as if there was a ‘straight wire’ from the digital source to the analogue amplifier.



• DAC
  Bit-Perfect DSD & DXD DAC by Burr Brown
• DIMENSIONS
  158(w) x 117(d) x 35(h) mm
  6.2" x 4.6" x 1.4"DNR>117 dB(A) @ -60dBFS (BAL/SE)
• FORMATS SUPPORTED
  PCM (384/352.8/192/176.4/96/88.2/48/44.1kHz)DSD (256/128/64), DXD(384/352.8kHz),MQA (Decoder)
• INPUT
• USB3.0 B Socket (USB2.0 compatible)
• NET WEIGHT
• 505g / 1.11lbs
• OUTPUT
• Balanced 4.4mm:2V-6.2V max. (variable) / 4.2V (fixed)Un
• BAL RCA:1V-3.3V max. (variable) / 2.1V (fixed)
• POWER CONSUMPTION
• No Signal ~0.5WMax Signal ~2.5WSNR<-117 dB(A) @ 0dBFS (BAL/SE)THD+N<0.0011% @ 0dBFS (BAL/SE)



Click here to download documentation from the manufacturer
