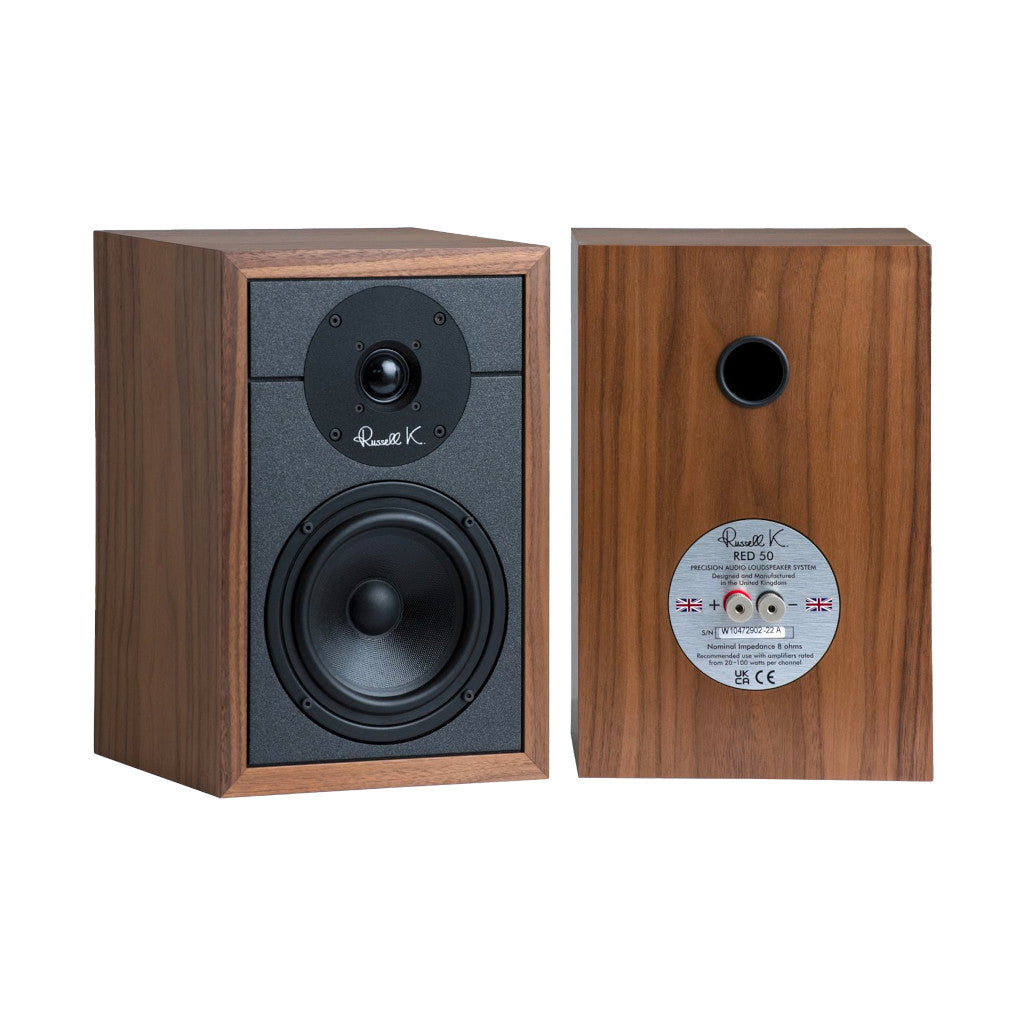

Russell K Red 50 Standmount Loudspeakers

• The Red 50 is the smallest cabinet in the Russell K range but what it gives up in size it makes up for with a huge musical heart.

  It offers low colouration while exhibiting superb stereo imaging, timing and real energy to the overall musical picture.



• Cabinet
• Dimensions H- 310mm W-205mm D-200mm
• Construction 16mm MDF all sides apart from front baffle which is 19mm.
• Totally undamped cabinet
• 1 acoustic loading bracing shelf with multiple (8) apertures mounted above the woofer

• Drive Units
• 5” Bass unit with impregnated paper cone and curved optimised acoustic profile
• High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
• 25mm soft dome tweeter
• Single Ferrite magnet system
• Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
• Reflex port loading tuned to 55Hz

• Crossover
• Drivers connected in positive phase crossover frequency 2200Hz nominal 12 db/Oct
• Bass Inductor “Enclosed Field Ferrite Core” Very low DCR nominal stray fields
• Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
• Both Drivers have only one component in the signal path
• Phase optimised through the crossover region
  In room frequency range 45Hz-22 KHz
